C-slot Cylinder Sensor | PNP Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK

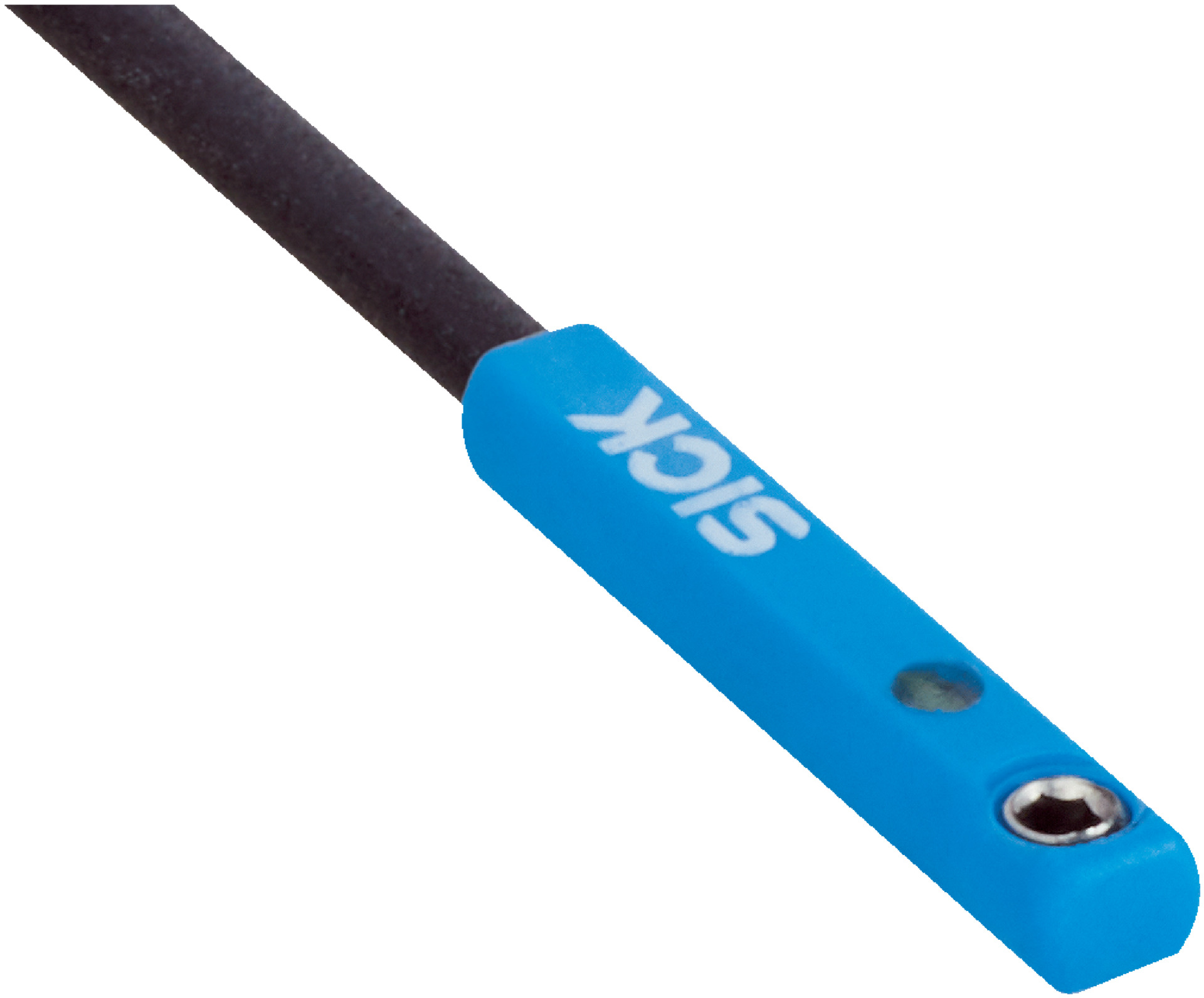

The C-slot Cylinder Sensor is designed for precise position sensing in industrial automation, featuring a PNP output and an impressive 1000 Hz switching frequency. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for integration with pneumatic cylinders from Festo, Zimmer, and Gimatic.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Operating temperature range: -25 °C to +75 °C
- Connection type: 3-wire cable, 5 m length, PUR material
- Enclosure rating: IP67
- Switching frequency: 1,000 Hz
- Output function: Normally open (NO)
- Switching output: PNP
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC compliance: EN 60947-5-2
- Status indicator: LED
- Dimensions (H x L x W): 20mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type sensor compatible with Festo, Zimmer, Gimatic cylinders
- Switching output: PNP with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- Completely embedded mounting in the slot for protection
- IP67 rated enclosure for dust and water resistance
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection: 3-wire, 5 m PUR cable with axial outlet
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation systems to ensure proper mounting and wiring according to manufacturer guidelines.
Applications
- Industrial automation for position sensing
- Integration with pneumatic cylinders from Festo, Zimmer, Gimatic
- Use in manufacturing and assembly lines requiring precise switching
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 8 mA without load
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

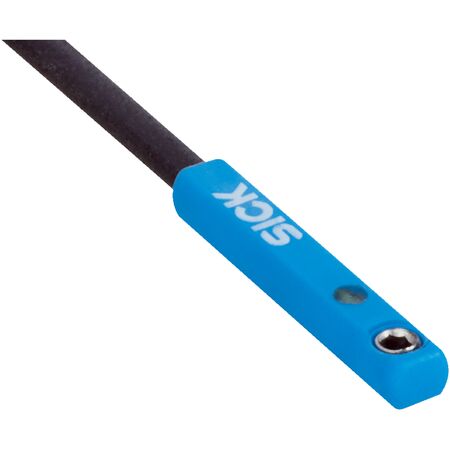

The SICK MZC2-1V7PS-FUB C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
