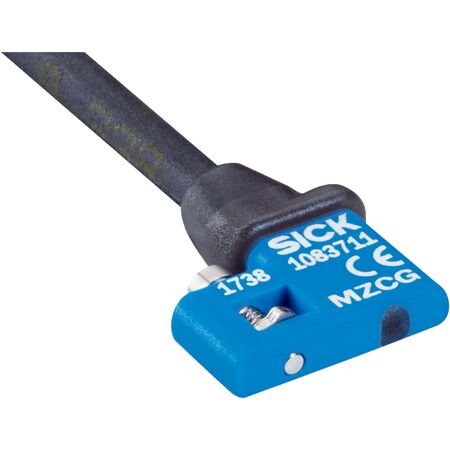

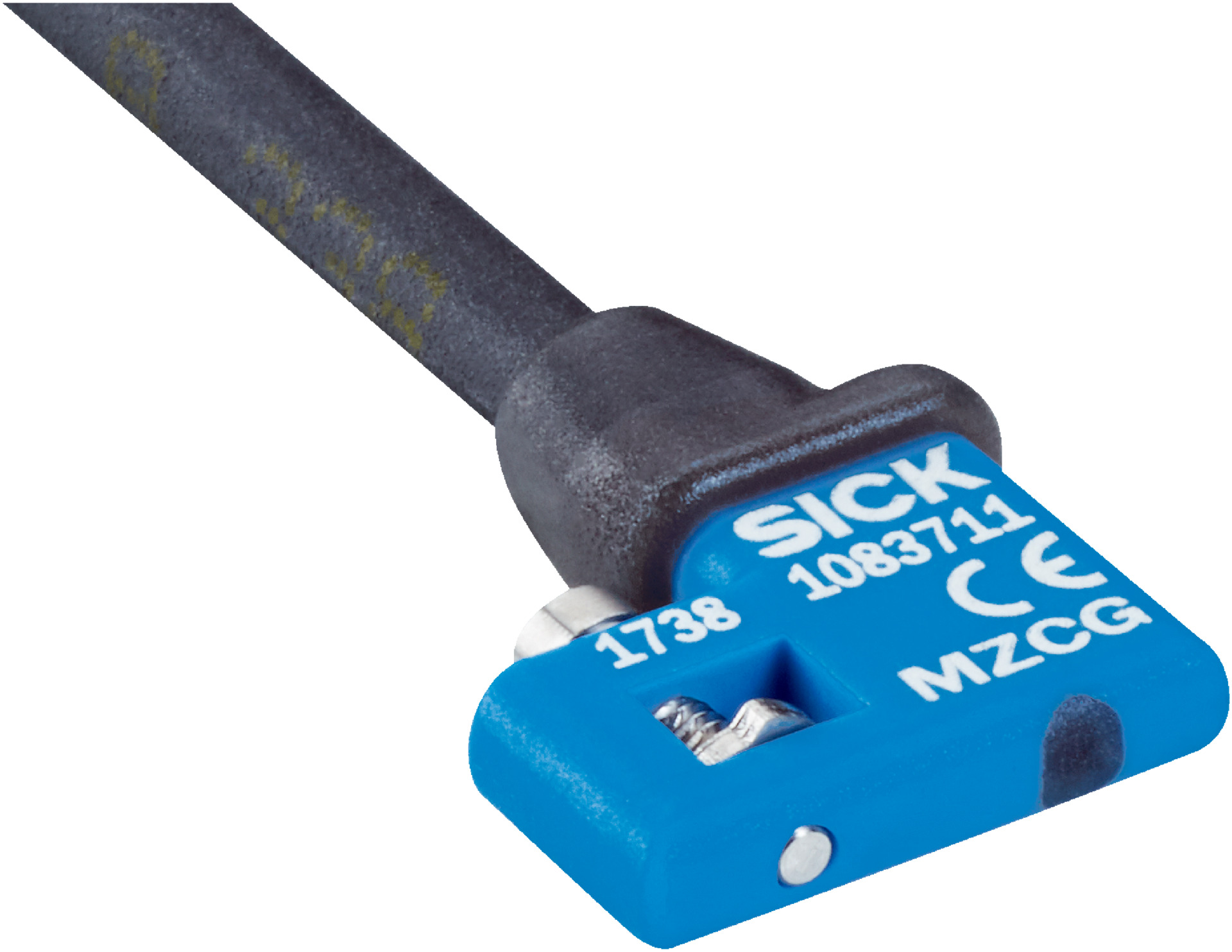

C-slot Cylinder Sensor | PNP Output | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position sensing in industrial automation. With a PNP switching output and a high switching frequency of 1,000 Hz, it ensures reliable performance in pneumatic and hydraulic applications. Its IP68 rating provides excellent dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Compatible adapters: SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 12.2 mm
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: 3-wire cable, 2 m PUR, radial outlet
- Cable diameter: 2.9 mm
- Bending radius: > 3x cable diameter fixed installation
- Torsion force: ±270° / 10 cm
- Torsion cycles: 2,000,000
- Drag chain cycles: > 2,000,000
- Material housing: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- PNP switching output with normally open function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP68 for dust and water protection
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 7 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 2 m PUR cable suitable for drag chain use
- Operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and industrial sensor integration to ensure safety and proper operation.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory automation requiring precise switching output
- Use in environments requiring IP68 rated sensors
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements
- Low power consumption contributes to energy efficiency
- Long service life reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MZCG-1Z7PS-KU0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder monitoring applications.
