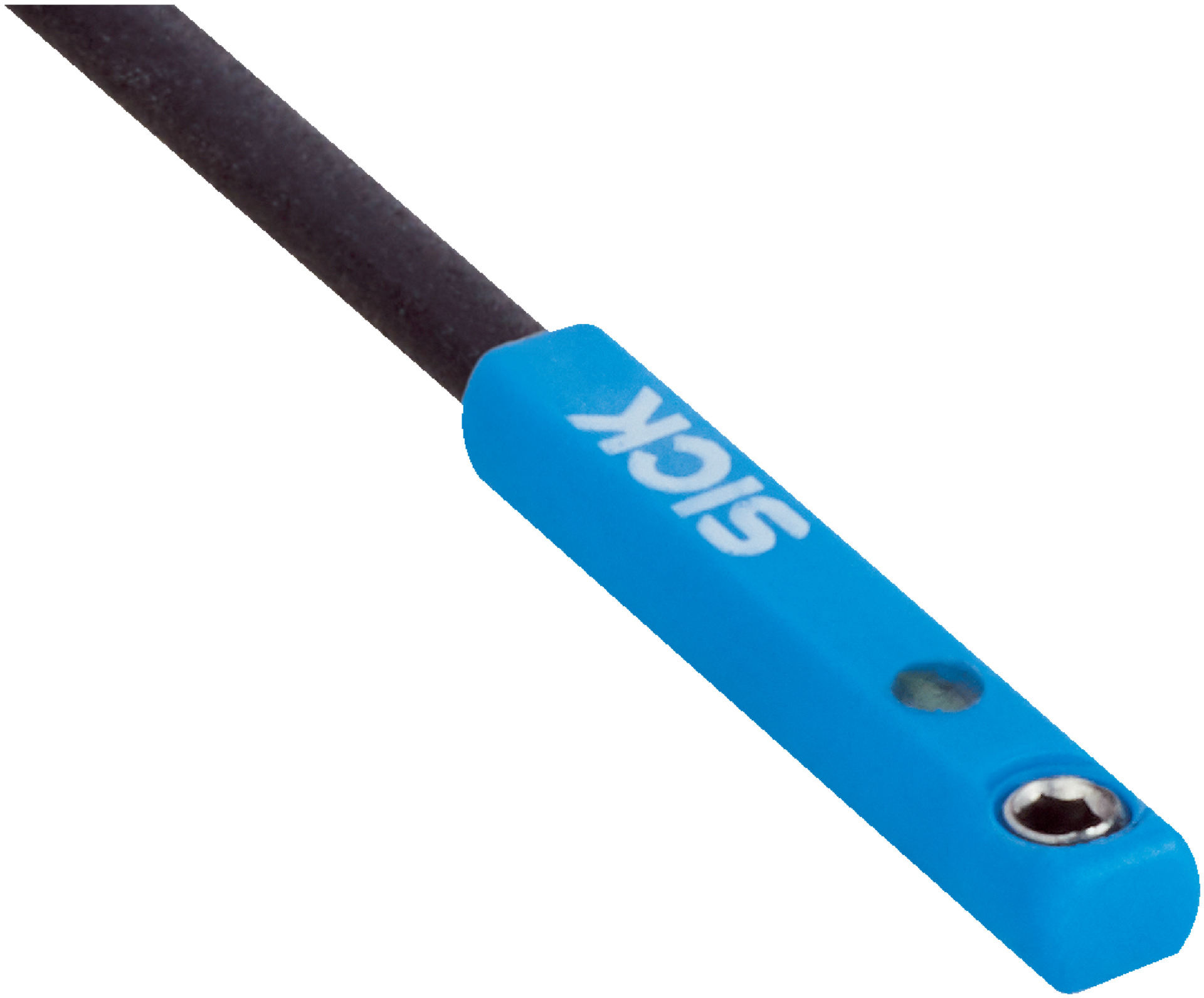

C-slot Cylinder Sensor | PNP Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position sensing in industrial automation. With a PNP switching output and a high switching frequency of 1,000 Hz, it ensures reliable performance in manufacturing equipment and robotics. Its IP67 rated enclosure provides excellent dust and water resistance, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Enclosure rating: IP67
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Connection type: 2 m PUR cable, axial outlet
- Operating temperature range: -25 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliance: EN 60947-5-2
- Status indicator: LED
- Reverse polarity, short-circuit, and power-up pulse protection
- Dimensions (H x L x W): 20mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type sensor compatible with Festo, Zimmer, Gimatic
- PNP switching output with normally open function
- High switching frequency of 1,000 Hz
- Completely embedded mounting in the slot for protection
- IP67 rated enclosure for dust and water resistance
- Status indicator LED for operational feedback
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 3-wire DC wiring and 2 m PUR cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and mounting according to industrial safety standards.
Applications
- Industrial automation for cylinder position sensing
- Manufacturing equipment with pneumatic cylinders
- Robotics and assembly line machinery
- Packaging and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 8 mA without load
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

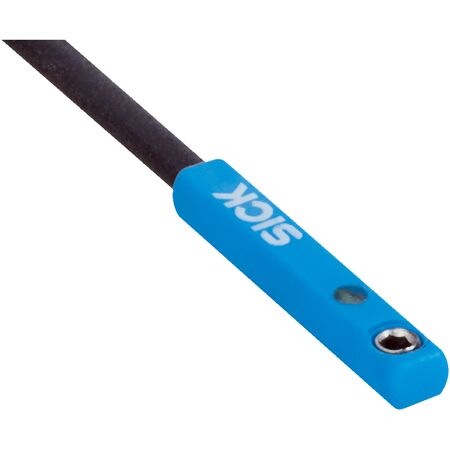

The SICK MZC2-1V7PS-FU0 C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
