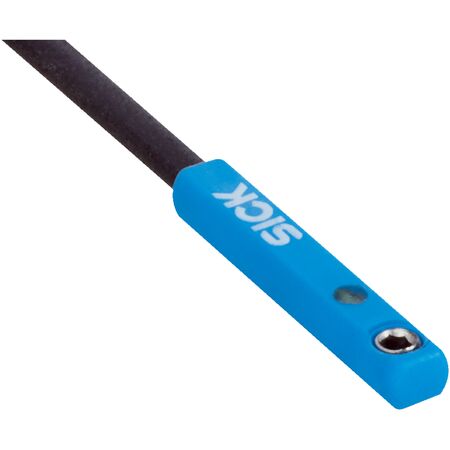

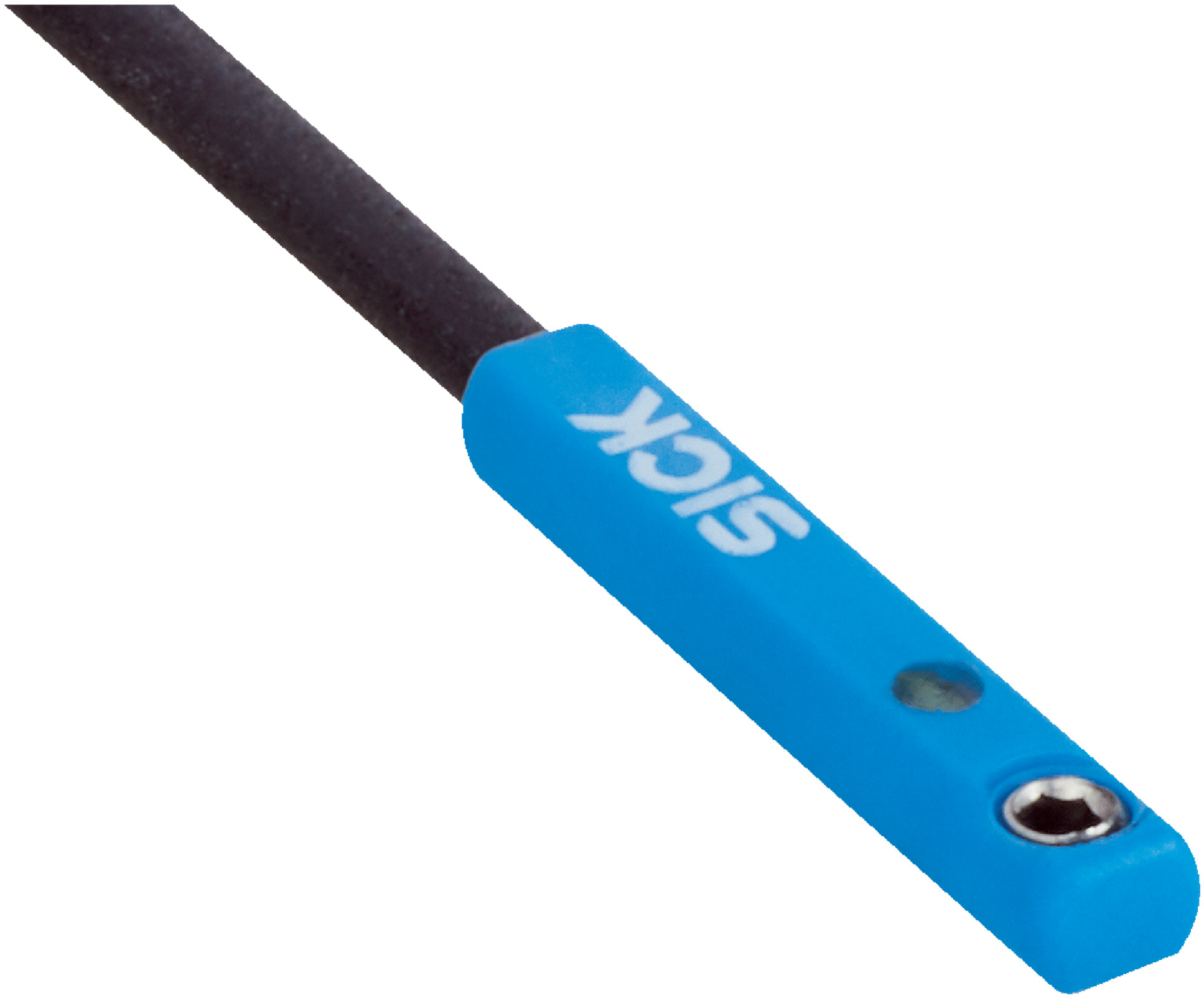

C-slot Cylinder Sensor | PNP Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The C-slot Cylinder Sensor is designed for precise cylinder position sensing in industrial automation. With a PNP output and a high switching frequency of 1,000 Hz, it ensures reliable performance in hazardous areas. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for embedded mounting in C-slot cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 50 mA
- Switching frequency: 1,000 Hz
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection: Cable with M8 3-pin plug, 0.5 m length, axial outlet
- Housing material: Plastic
- Cable material: PUR
- Ex area category: 3G, 3D
- Device labeling: II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T 135°C Dc X
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type sensor compatible with SMC, PHD, Bimba cylinders
- PNP switching output with normally open function
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Completely embedded mounting providing protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin plug, 0.5 m length, axial outlet
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and hazardous area equipment standards to ensure safety and compliance.
Applications
- Industrial automation for cylinder position sensing
- Use in hazardous areas with Ex 3G, 3D classification
- Suitable for embedded mounting in C-slot cylinders
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 8 mA without load
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MZC2-1V7PS-SRX C-slot Cylinder Sensor is available for immediate purchase, ideal for industrial automation and hazardous area applications.
