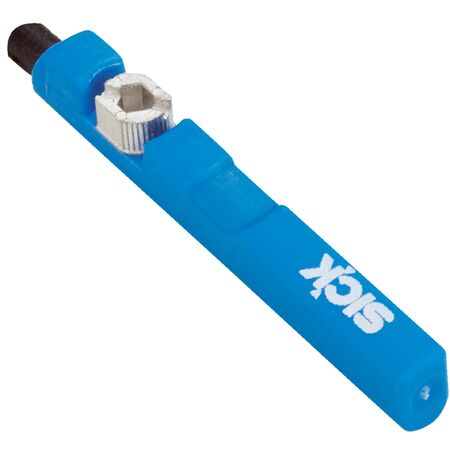

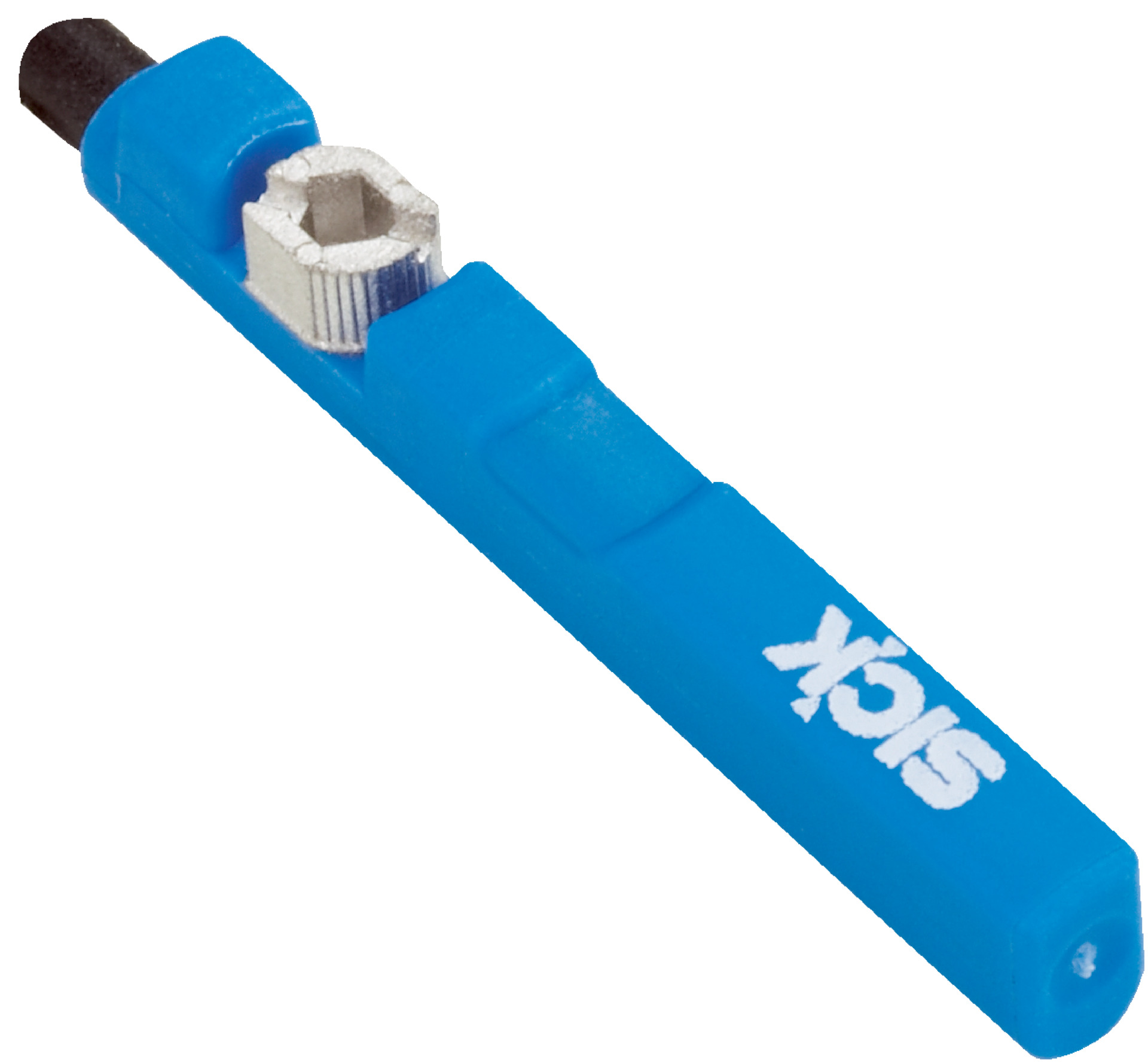

C-slot Reed Switch Sensor | IP67 Rated | 500 Hz Switching Frequency | Normally Open Output | by SICK
The C-slot Reed Switch Sensor is designed for precise cylinder position detection in industrial automation. With an IP67 enclosure rating, it offers robust protection against dust and water, making it ideal for pneumatic systems. Featuring a high switching frequency of 500 Hz and a normally open output, this sensor ensures reliable performance in machine safety and control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 500 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 5 V to 30 V AC/DC
- Power consumption: 5 mA without load
- Voltage drop: < 3.2 V
- Continuous current Ia: ≤ 50 mA
- Switching capacity: ≤ 1.5 W
- Protection class: III
- Overrun distance (typical): 7 mm
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 2-pin connector, 0.3 m length
- Cable diameter: Ø 2.2 mm
- Material housing: Plastic, PA strengthened
- Cable material: PUR
- MTTFD: 6,415 years
- Mission time: 20 years
- B10D: 30,000,000 switching cycles
- Dimensions (H x L x W): 26mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type with adapter compatibility for SMC rail CDQ2 and ECDQ2
- Reed switching output with normally open (NO) function
- High switching frequency up to 500 Hz
- Electrical wiring: AC/DC 2-wire
- Enclosure rating IP67 for dust and water protection
- Supply voltage range from 5 V to 30 V AC/DC
- Low power consumption of 5 mA without load
- Status indicator LED for operational feedback
- Robust mechanical design with shock and vibration resistance
- Cable with M8 2-pin connector, suitable for drag chain use
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RZC1-04ZUS-KP0 sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
