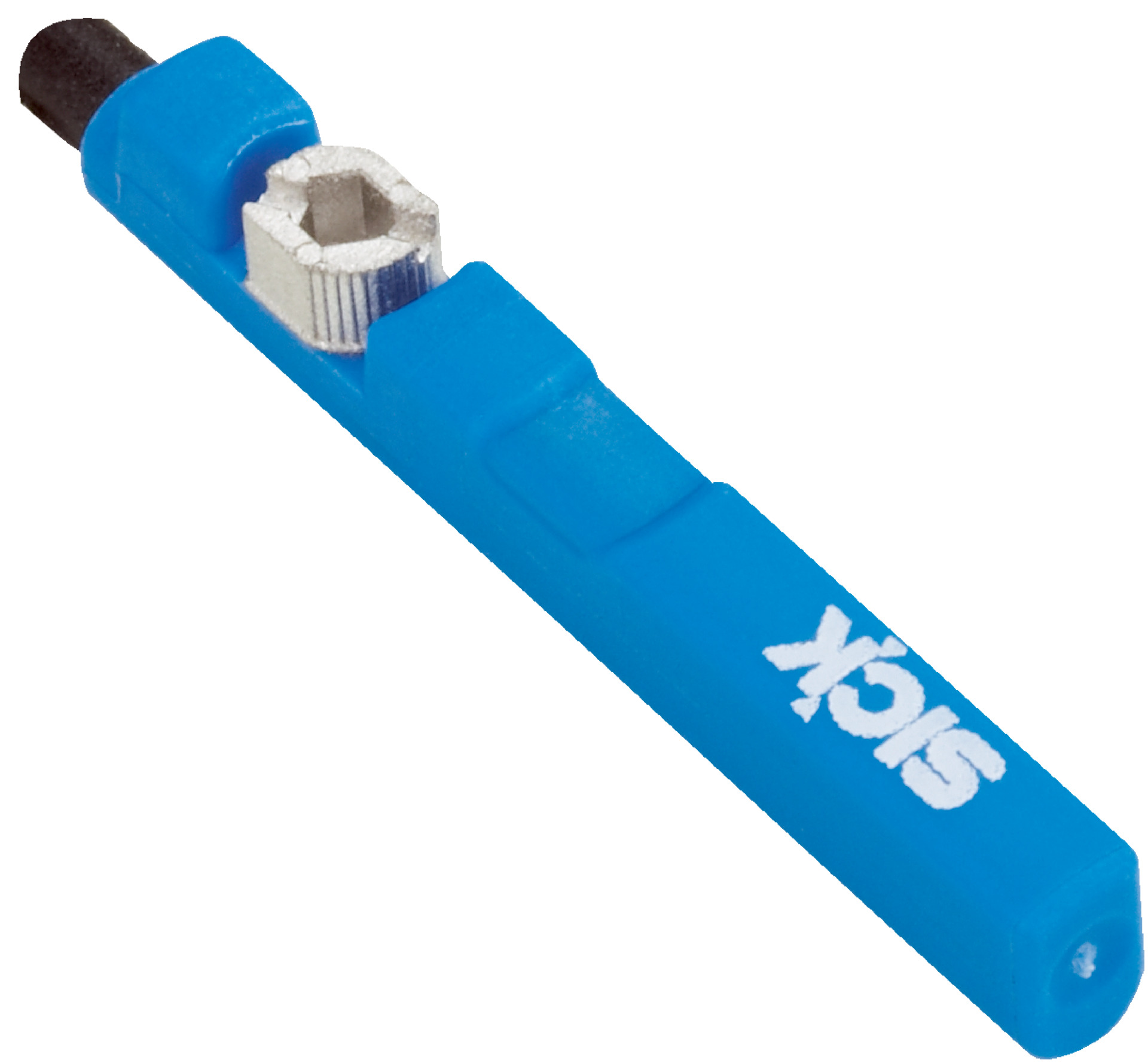

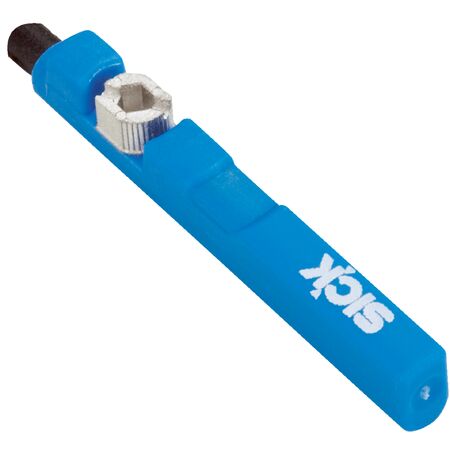

C-slot Reed Switch Sensor | IP67 Rated | 500 Hz Switching Frequency | Status Indicator LED | by SICK
The C-slot Reed Switch Sensor is designed for precise cylinder position detection in industrial automation. With a high switching frequency of 500 Hz and an IP67 enclosure rating, it ensures reliable performance in harsh environments. Ideal for pneumatic systems and machine safety applications, this sensor features low power consumption and a status indicator LED for operational feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: Reed, normally open (NO)
- Switching frequency: 500 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 5 V to 30 V AC/DC
- Power consumption: 5 mA without load
- Voltage drop: < 0.5 V
- Continuous current Ia: ≤ 500 mA
- Switching capacity: ≤ 10 W
- Protection class: III
- Overrun distance (typical): 7 mm
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin connector, 0.3 m length
- Cable specifications: PUR, diameter 2.2 mm, conductor cross section 0.09 mm²
- Drag chain cycles: 5,000,000
- Torsion cycles: 300,000
- Dimensions (H x L x W): 26mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- Reed switching output with normally open (NO) function
- High switching frequency up to 500 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating IP67 for dust and water protection
- Supply voltage range from 5 V to 30 V AC/DC
- Low power consumption of 5 mA without load
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin connector, suitable for drag chain use with 5 million bending cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensors and industrial automation systems to ensure proper wiring and safety compliance.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RZC1-04ZRS-KP0 sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
