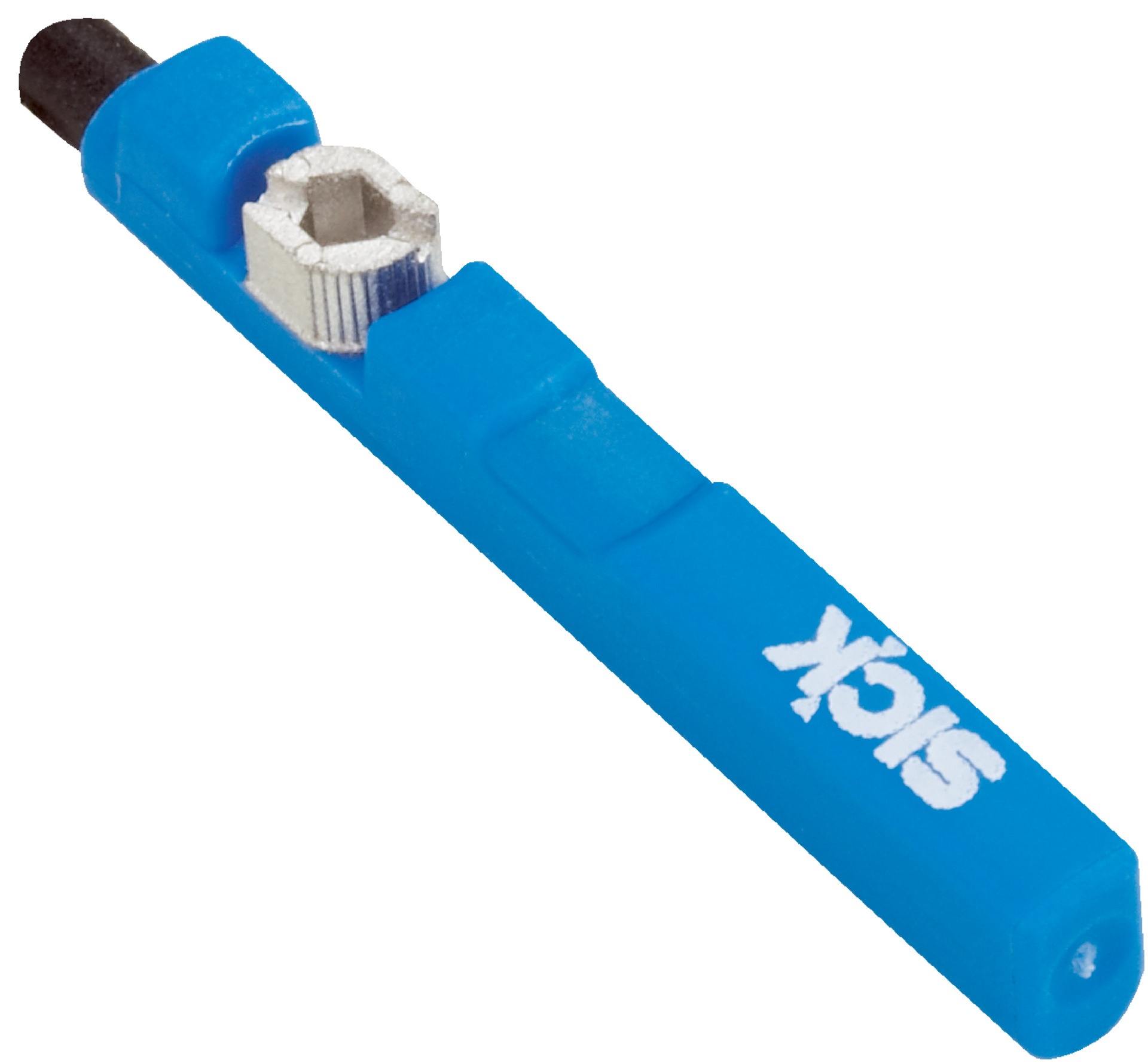

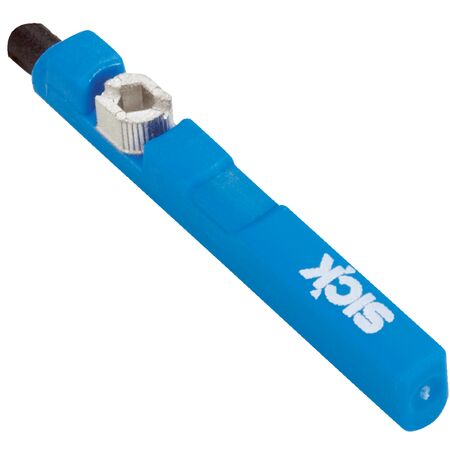

C-slot Reed Switch Sensor | IP68 Rated | 500 Hz Switching Frequency | Normally Open Output | by SICK
The C-slot Reed Switch Sensor is designed for precise cylinder position detection in industrial automation. With an IP68 rating for dust and water resistance, it operates on a supply voltage range of 5 V to 30 V AC/DC and features a high switching frequency of 500 Hz. Ideal for use with SMC rail CDQ2 and ECDQ2 cylinders, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 500 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 5 V to 30 V AC/DC
- Power consumption: 5 mA without load
- Voltage drop: < 0.5 V
- Continuous current Ia: ≤ 500 mA
- Switching capacity: ≤ 10 W
- Protection class: III
- Overrun distance, typical: 7 mm
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin connector, 0.3 m length
- Cable diameter: Ø 2.2 mm
- Material housing: Plastic, PA strengthened
- Cable material: PUR
- MTTFD: 41,230 years
- Mission time: 20 years
- Dimensions (H x L x W): 26mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2
- Reed switching output with normally open (NO) function
- High switching frequency up to 500 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating IP68 for dust and water resistance
- Supply voltage range 5 V to 30 V AC/DC
- Low power consumption of 5 mA without load
- Status indicator LED for operational feedback
- Robust mechanical design with shock and vibration resistance
- Cable with M8 3-pin connector, suitable for drag chain use
