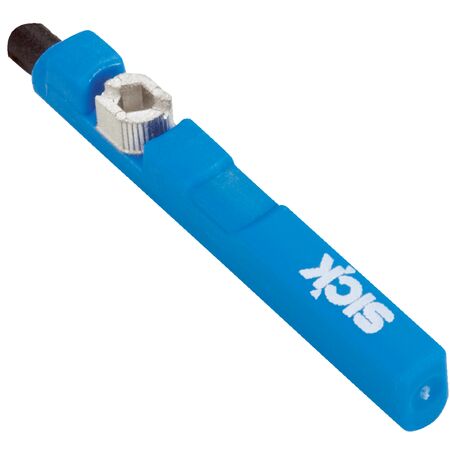

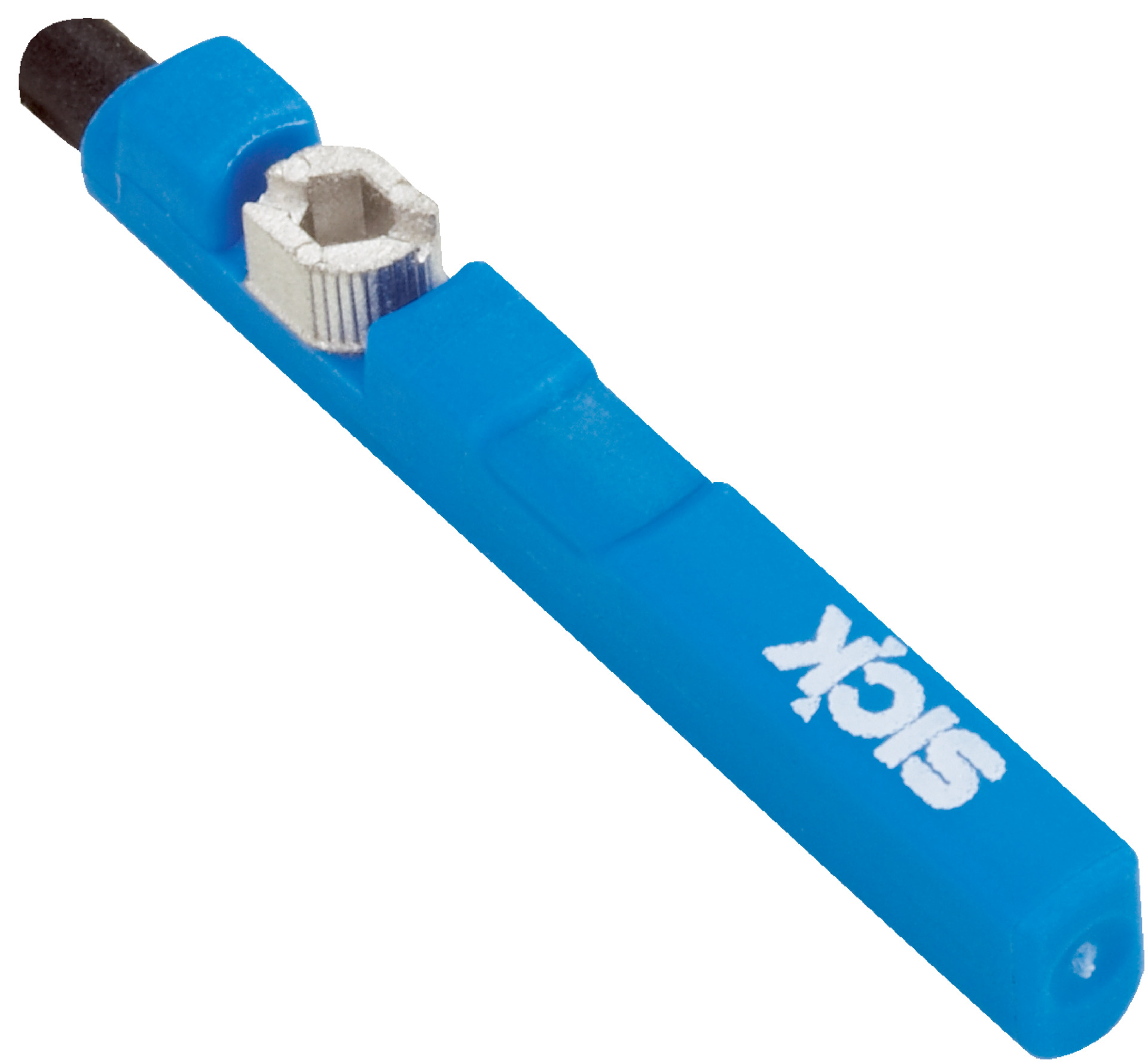

C-slot Reed Switch Sensor | IP68 Rated | High Switching Frequency | M8 Connector | by SICK
The C-slot Reed Switch Sensor is designed for industrial automation, featuring an IP68 rating for dust and water resistance and a high switching frequency of up to 500 Hz. Ideal for position sensing applications, this robust sensor ensures reliable performance in harsh environments, making it perfect for use with SMC rail CDQ2 and ECDQ2 cylinders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V AC/DC to 30 V AC/DC
- Power consumption: 5 mA without load
- Voltage drop: less than 0.5 V
- Continuous current Ia: up to 500 mA
- Switching capacity: up to 10 W
- Protection class: III
- Overrun distance typical: 7 mm
- Reproducibility: less than or equal to 0.1 mT
- Ambient operating temperature: -30 °C to +80 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- EMC compliance: EN 60947-5-2
- Cable: PUR, diameter 2.2 mm, conductor cross section 0.09 mm²
- Torsion force: ±270° per 0.1 m
- Drag chain cycles: minimum 5 million
- Connection type: Cable with M8 3-pin connector, axial outlet
- Dimensions (H x L x W): 26mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2
- Reed switching output with normally open (NO) function
- High switching frequency up to 500 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating IP68 for dust and water resistance
- Status indicator LED for operational feedback
- Robust mechanical design with shock and vibration resistance
- Cable with M8 3-pin connector, 0.5 m length, axial outlet
- Long service life with MTTFD of 41,230 years and 20 years mission time
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Use with SMC rail CDQ2 and ECDQ2 cylinders
- Suitable for harsh environments requiring IP68 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 5 mA reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK RZC1-04ZRS-KRD sensor is available for immediate purchase, ideal for industrial automation and position sensing applications.
