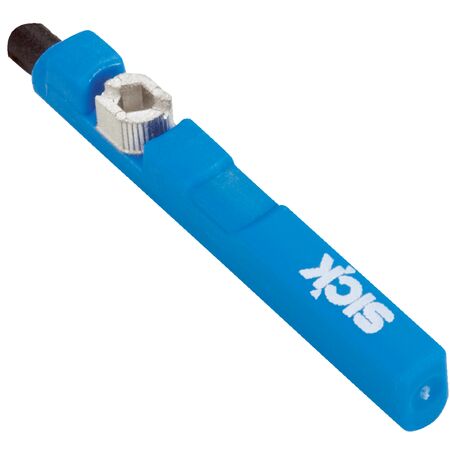

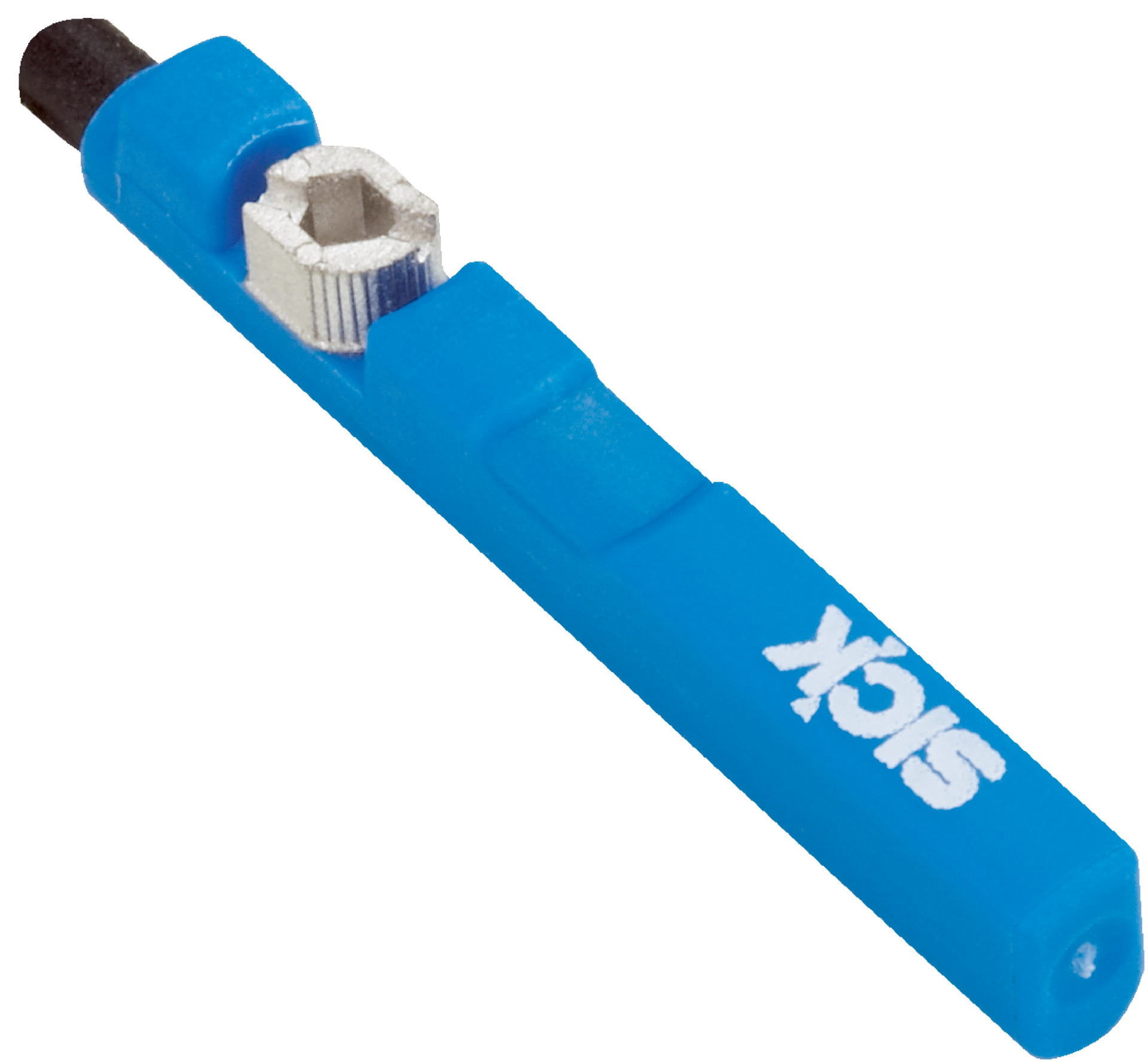

C-slot Reed Switch Sensor RZC1-04ZRS-KUB | IP68 & IP69K Rated | 500 Hz Switching Frequency | by SICK
The C-slot Reed Switch Sensor RZC1-04ZRS-KUB is designed for precise cylinder position sensing in industrial automation. With a high switching frequency of 500 Hz and an IP68/IP69K enclosure rating, it excels in harsh environments. This sensor operates within a wide voltage range of 5 V to 30 V AC/DC, ensuring reliable performance while minimizing power consumption. Ideal for applications requiring robust and efficient position sensing solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: Reed, Normally Open (NO)
- Switching frequency: 500 Hz
- Electrical wiring: AC/DC 3-wire
- Enclosure rating: IP68 and IP69K
- Supply voltage: 5 V to 30 V AC/DC
- Power consumption: 5 mA without load
- Voltage drop: < 0.5 V
- Continuous current Ia: ≤ 500 mA
- Switching capacity: ≤ 10 W
- Protection class: III
- Overrun distance, typical: 7 mm
- Reproducibility: ≤ 0.1 mT
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 3-wire, stripped, 5 m
- Cable diameter: Ø 2.2 mm
- Material housing: Plastic, PA, strengthened
- Cable material: PUR
- Dimensions (H x L x W): 26mm x 26mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- Reed switching output with normally open (NO) function
- High switching frequency up to 500 Hz
- Enclosure rating IP68 and IP69K for water and dust resistance
- Wide supply voltage range from 5 V to 30 V AC/DC
- Low power consumption of 5 mA without load
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 3-wire stripped 5 m PUR cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder type sensing with C-slot cylinders
- Harsh environment applications requiring IP68/IP69K protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy savings
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK RZC1-04ZRS-KUB sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
