C2C-EV19530C10000 | Safety light curtains

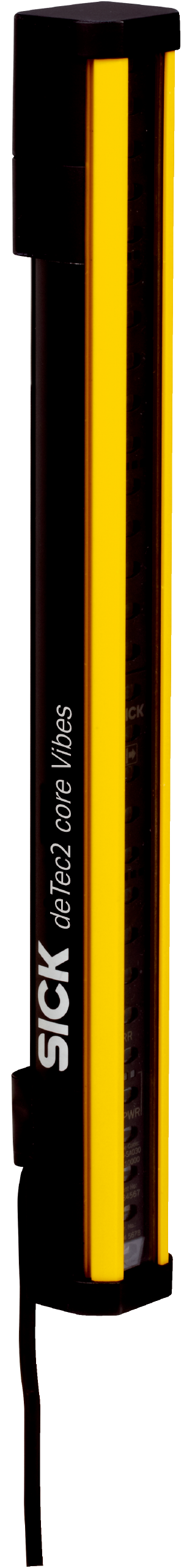

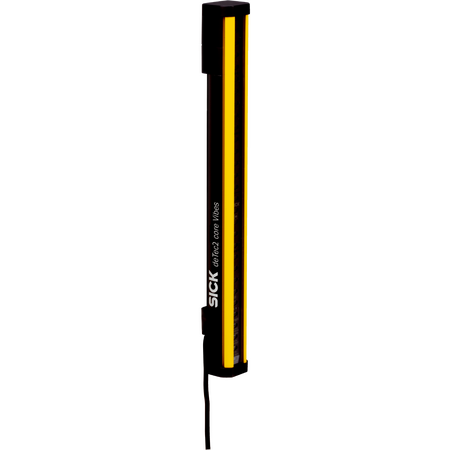

The SICK C2C-EV19530C10000 safety light curtain receiver is designed for machines exposed to strong shock or vibration loads, providing reliable protective operation with a 6 m scanning range and 30 mm resolution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EV19530C10000 | Safety light curtains
Brand: SICK
SKU: 1122237
Alternatively Known As: Safety light curtain receiver, Safety light barrier, Machine safety sensor, Optical safety curtain
Technical Specifications
- Product version: deTec2 Core Vibes
- System part: Receiver
- Resolution: 30 mm
- Scanning range: 6 m
- Protective field height: 1,950 mm
- Response time: 14 ms
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31.0 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 2.69 W
- Output type: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output ON voltage: 24 V DC (VS – 2.25 V DC ... VS)
- Output OFF voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65, IP67 (IEC 60529)
- Operating temperature: –30 °C to +55 °C
- Storage temperature: –30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5–150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 1950mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 2 safety light curtain according to IEC 61496-1
- Resolution of 30 mm with a scanning range of 6 m
- Protective field height of 1,950 mm
- Response time of 14 ms with no blind zones
- Optical synchronization for reliable operation
- LED display elements for status indication
- Robust aluminum extruded profile housing
- High vibration and shock resistance (5-150 Hz, 3.5 mm / 1 g; 15 g / 6 ms)
- IP65 and IP67 rated enclosure for harsh environments
- Short-circuit protected, cross-circuit monitored 2 PNP semiconductor outputs
Professional Installation Requirements
- Installation must be performed by a qualified professional familiar with safety light curtain systems and relevant safety standards to ensure compliance and optimal operation.
Applications
- Machines with strong shock or vibration loads requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (2.69 W typical) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK C2C-EV19530C10000 safety light curtain receiver is available for immediate purchase, ideal for industrial machinery requiring high safety standards under strong shock or vibration conditions.
