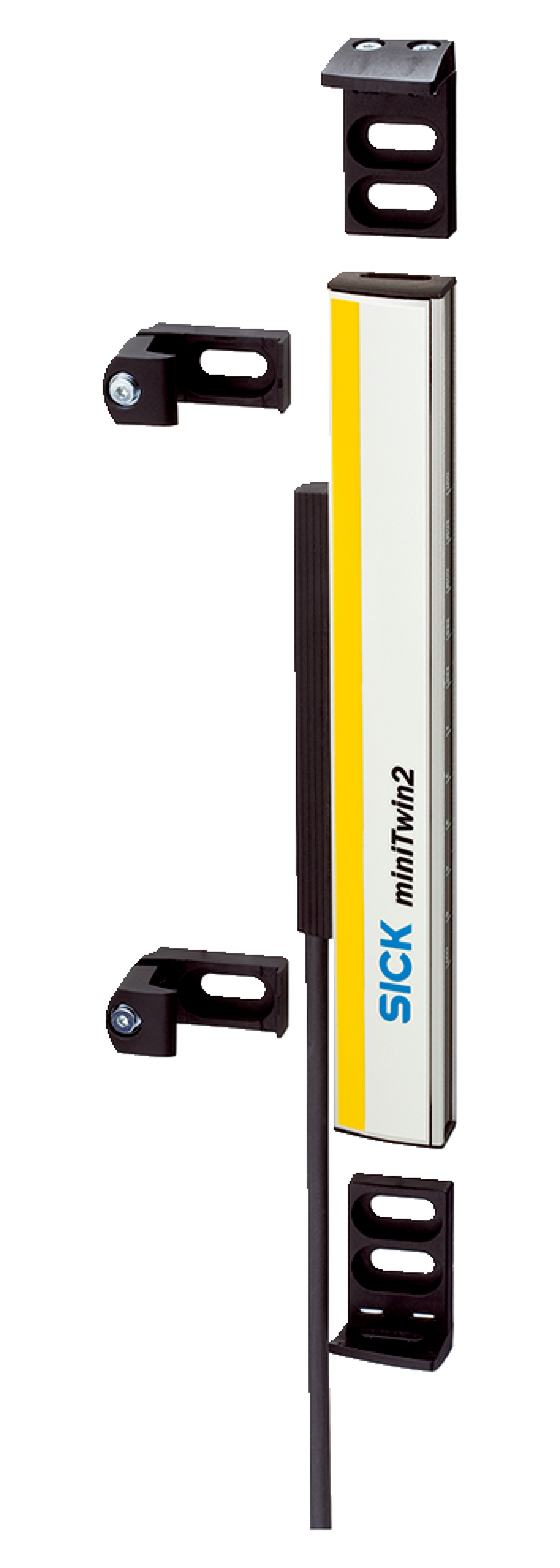

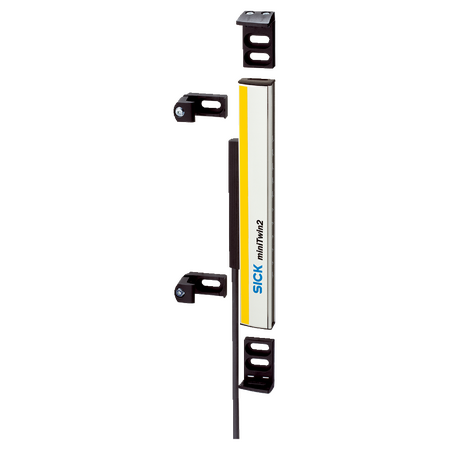

C2MT-06024BBC03FE0 | Safety light curtains
The SICK C2MT-06024BBC03FE0 Safety Light Curtain offers reliable industrial safety with a 24 mm resolution, 600 mm protective height, and robust aluminum housing, suitable for machinery and automation safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2MT-06024BBC03FE0 | Safety light curtains
Brand: SICK
SKU: 1207836
Alternatively Known As: Safety light curtain, safety sensor curtain, industrial safety light barrier, machine safety light curtain
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin2 standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 600 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal): 58/s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD OFF
- Restart interlock and external device monitoring included
- System connection: Male connector M12, 5-pin, 700 mm cable
- Configuration: Hard wired
- Display: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected
- Output current per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 600mm x 32mm x 15mm
- Weight: 0.215 kg
Key Features
- Twin-Stick system part
- MiniTwin2 usable as standalone or in 2- or 3-device cascade
- Mounting with C-fix or L-fix bracket
- 24 mm resolution
- Scanning range from 0 m to 6 m minimum, typically up to 8 m
- Protective field height of 600 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection
- Hard wired configuration with LED display elements
- Protection class III (EN 61140)
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices, short-circuit protected and cross-circuit monitored
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65 (EN 60529)
- Operating temperature range -20 °C to +55 °C
- Storage temperature range -25 °C to +70 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing for long product life
- Energy-efficient operation with low power consumption
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C2MT-06024BBC03FE0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and personnel protection applications.
