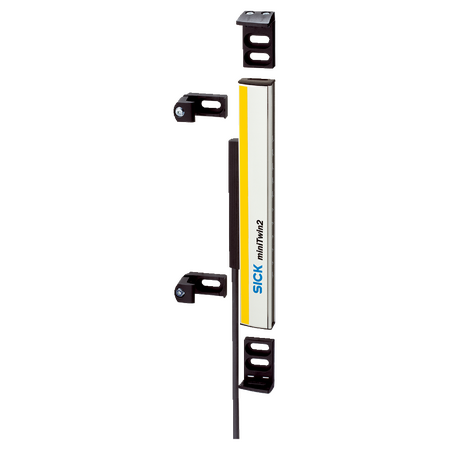

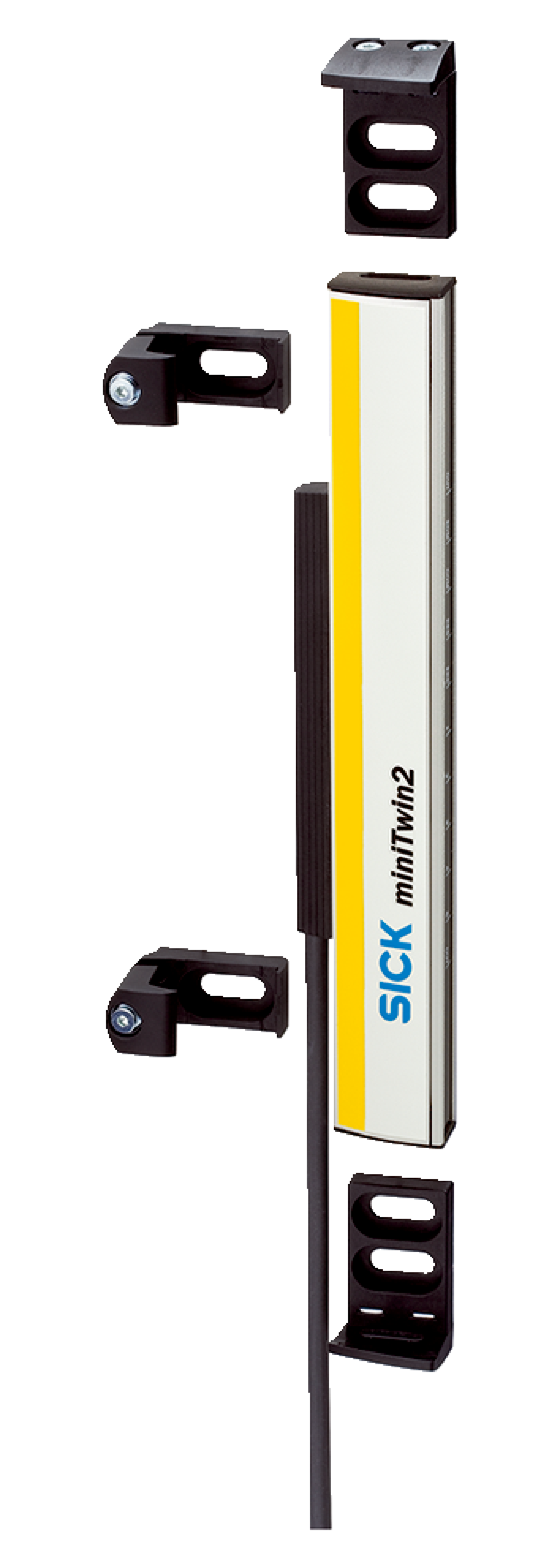

C2MT-07234BBC03FE0 | Safety light curtains
The SICK C2MT-07234BBC03FE0 Safety Light Curtains provide reliable industrial safety with a 720 mm protective field height, 34 mm resolution, and fast response time, suitable for machine guarding and automation safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2MT-07234BBC03FE0 | Safety light curtains
Brand: SICK
SKU: 1207857
Alternatively Known As: Safety light curtain, safety light barrier, machine safety sensor, industrial light curtain, presence sensor
Technical Specifications
- System part: 1 Twin-Stick
- Usage: standalone or cascade with 2-3 devices
- Mounting system: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: 0 m to 8 m typical
- Protective field height: 720 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Output type: PNP semiconductors, short-circuit protected
- ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 3 A
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 720mm x 32mm x 15mm
- Weight: 0.255 kg
Key Features
- Twin-Stick system part
- MiniTwin2 usable as standalone or in 2- or 3-device cascade
- Mounting with C-fix or L-fix bracket
- Resolution of 34 mm
- Scanning range from 0 m to 8 m typical
- Protective field height of 720 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial safety guarding
- Machine access protection
- Automation safety systems
- Hazardous area perimeter guarding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 3 A power usage
- Durable aluminum alloy housing for long product life
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C2MT-07234BBC03FE0 Safety Light Curtains are available for immediate purchase, ideal for industrial safety and machine guarding applications.
