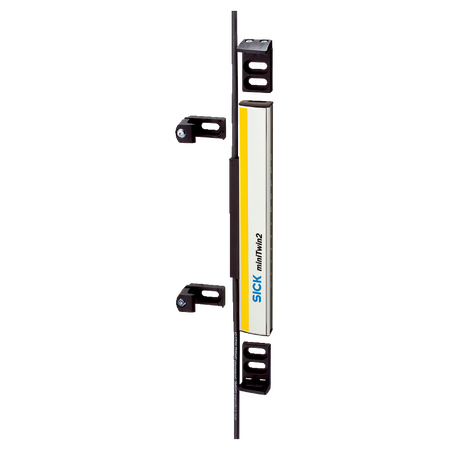

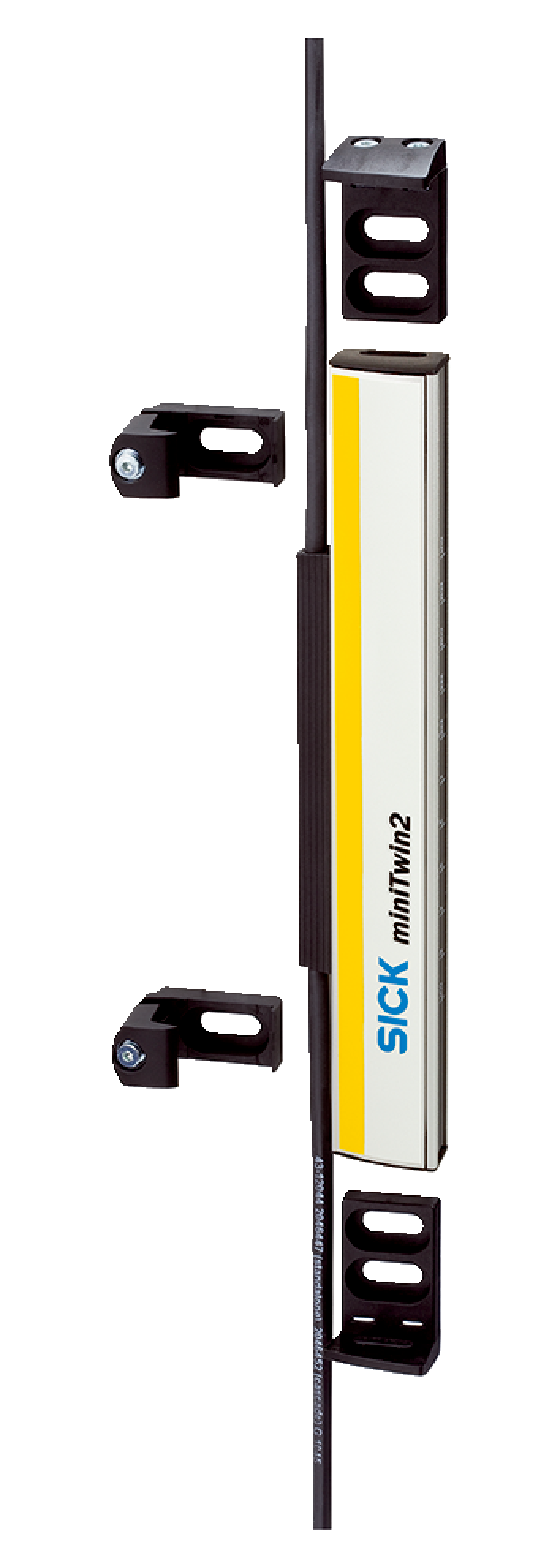

C2MT-08414BBC04FE0 | Safety light curtains
The SICK C2MT-08414BBC04FE0 Safety Light Curtains provide reliable industrial safety with a 14 mm resolution, up to 8 m scanning range, and robust aluminum housing for machine guarding and automation safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2MT-08414BBC04FE0 | Safety light curtains
Brand: SICK
SKU: 1207878
Alternatively Known As: Safety light curtain, safety sensor curtain, industrial light barrier, machine safety curtain
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin2 as host for 2- or 3-device cascade, miniTwin2 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 840 mm
- Response time: ≤ 17 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal test): 47 /s
- Maximum demand rate: 28 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 5.2 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in fault: At least one OSSD is OFF
- System connection: Male connector M12, 5-pin, 700 mm cable
- Extension connection: Female connector M12, 5-pin, 700 mm cable
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 300 g
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wave length: 850 nm
- Dimensions (H x L x W): 840mm x 32mm x 15mm
- Weight: 0.3 kg
Key Features
- Twin-Stick system part
- MiniTwin2 host for 2- or 3-device cascade
- Mounting with C-fix or L-fix bracket
- 14 mm resolution
- Scanning range typical 0 m to 8 m
- Protective field height 840 mm
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements
- Short-circuit protected PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety guarding
- Machine access protection
- Automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient electronics
- Durable aluminum housing reduces material waste
- Long operational life reduces replacement frequency
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C2MT-08414BBC04FE0 Safety Light Curtains are available for immediate purchase, ideal for industrial safety and machine guarding applications.
