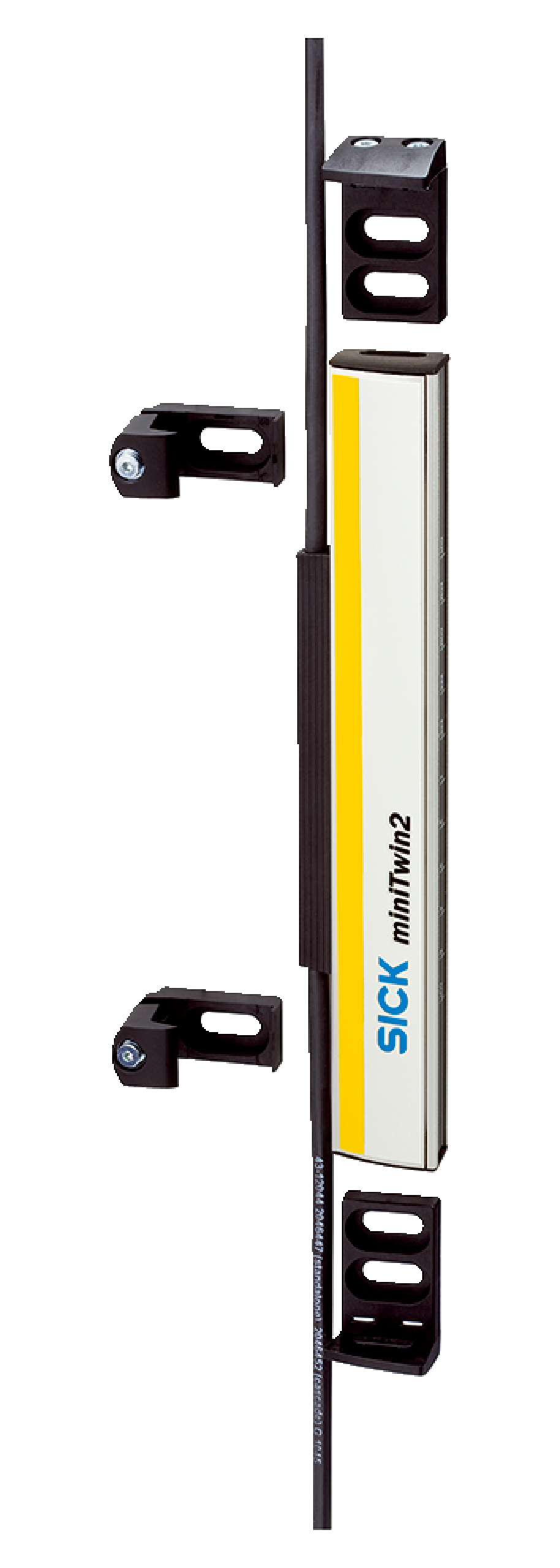

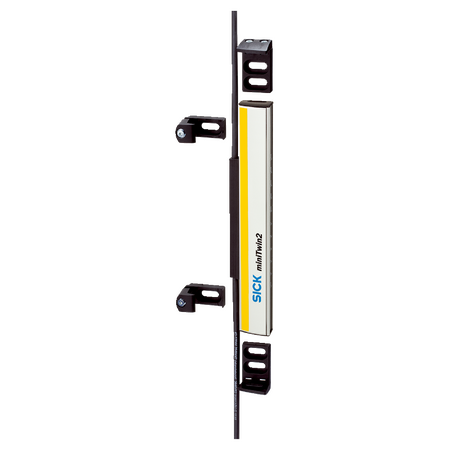

C2MT-09614BBC04FE0 | Safety light curtains
The SICK C2MT-09614BBC04FE0 Safety Light Curtains provide reliable industrial safety with a 14 mm resolution, 960 mm protective field height, and up to 8 m scanning range, suitable for machine safeguarding and access control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2MT-09614BBC04FE0 | Safety light curtains
Brand: SICK
SKU: 1207880
Alternatively Known As: Safety light curtain, safety sensor curtain, presence detection curtain, machine safety light barrier
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin2 as host for 2- or 3-device cascade, miniTwin2 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 960 mm
- Response time: ≤ 17 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal test): 47 /s
- Performance level: PL c (EN ISO 13849)
- PFHD: 5.2 x 10^-8 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD is OFF
- System connection: Male connector M12, 5-pin, 700 mm cable
- Extension connection: Female connector M12, 5-pin, 700 mm cable
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output voltage HIGH: 24 V DC (VS – 2.25 V DC to VS)
- Output voltage LOW: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 960mm x 32mm x 15mm
- Weight: 0.34 kg
Key Features
- Twin-Stick system part for flexible cascade configurations
- Resolution of 14 mm with protective field height of 960 mm
- Scanning range from 0 m to 8 m typical
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and compliance with relevant safety standards.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding in manufacturing and automation
- Access control and perimeter guarding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient 24 V DC operation
- Durable aluminum alloy housing extends product life reducing waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C2MT-09614BBC04FE0 Safety Light Curtains are available for immediate purchase, ideal for industrial machine safeguarding and safety automation applications.
