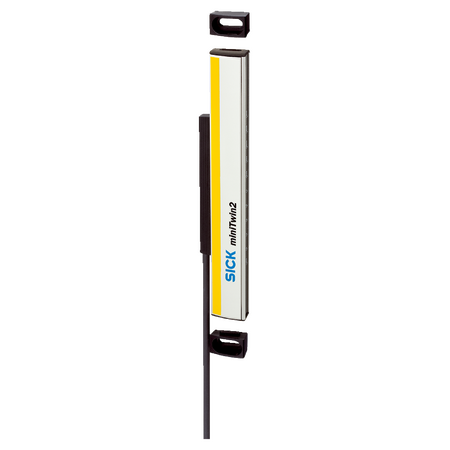

C2MT-10224BBC03FB0 | Safety light curtains
The SICK C2MT-10224BBC03FB0 Safety Light Curtain provides reliable industrial safety with a 24 mm resolution, 1020 mm protective field height, and fast response time, ideal for safeguarding automated machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2MT-10224BBC03FB0 | Safety light curtains
Brand: SICK
SKU: 1207957
Alternatively Known As: Safety light curtain, industrial safety sensor, machine guarding light curtain, optical safety barrier
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin2 as a standalone device
- Mounting system type: O-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 1020 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal test): 58 /s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in fault: At least one OSSD is OFF
- Restart interlock: Yes
- External device monitoring (EDM): Yes
- Beam coding: Automatic
- System connection: Male connector M12, 5-pin
- Cable length: 700 mm
- Conductor cross section: 0.34 mm²
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 1020mm x 32mm x 15mm
- Weight: 0.36 kg
Key Features
- Twin-Stick system part for reliable safety monitoring
- MiniTwin2 standalone device usage
- O-fix bracket mounting system
- 24 mm resolution with protective field height of 1020 mm
- Scanning range from 0 m to 8 m typical
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards to ensure proper function and safety integrity.
Applications
- Industrial safety guarding for machinery
- Access protection in automated production lines
- Hazardous area monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces risk of accidents and machine downtime, promoting safer and more efficient industrial operations
- Durable aluminum alloy housing supports long product life and reduces waste
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK C2MT-10224BBC03FB0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring reliable machine guarding and personnel protection.
