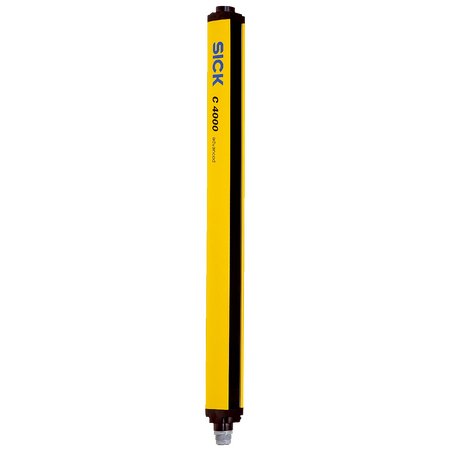

C40E-0904CB010 | Safety light curtains
The SICK C40E-0904CB010 Safety Light Curtain Receiver is designed for normal industrial environments, offering high safety performance with Type 4 classification, SIL 3 integrity, and a protective field height of 900 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-0904CB010 | Safety light curtains
Brand: SICK
SKU: 1018819
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, SICK safety sensor, C40E safety curtain
Technical Specifications
- Resolution: 40 mm
- Scanning range: 21 m
- Protective field height: 900 mm
- Response time: 11 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15*10^-9 to 63*10^-9 (EN ISO 13849)
- Mission time: 20 years
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Current capacity per OSSD: ≤ 500 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Housing material: Aluminum extruded profile
- Wave length: 850 nm
- Dimensions (H x L x W): 40mm x 900mm x 48mm
- Weight: 1.99 kg
Key Features
- Protective field height of 900 mm with 40 mm resolution
- Scanning range up to 21 m with optical synchronization
- Response time of 11 ms
- Type 4 safety classification (IEC 61496-1)
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Features include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- Hirschmann male connector M26, 12-pin system connection with 50 m permitted cable length
- 7-segment display for configuration and diagnostics
- Housing made of aluminum extruded profile with IP65 enclosure rating
- Operating temperature range 0 °C to +55 °C
- Shock resistance 10 g, vibration resistance 5 g
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with RoHS and China RoHS environmental standards
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK C40E-0904CB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
