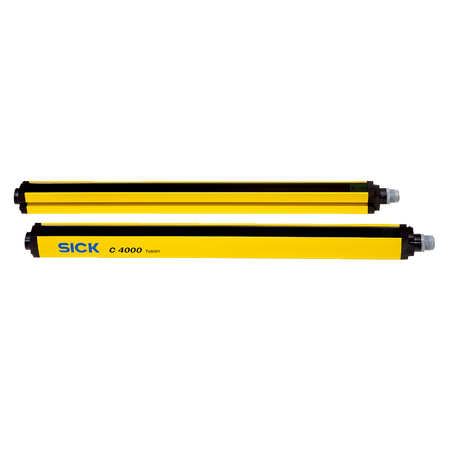

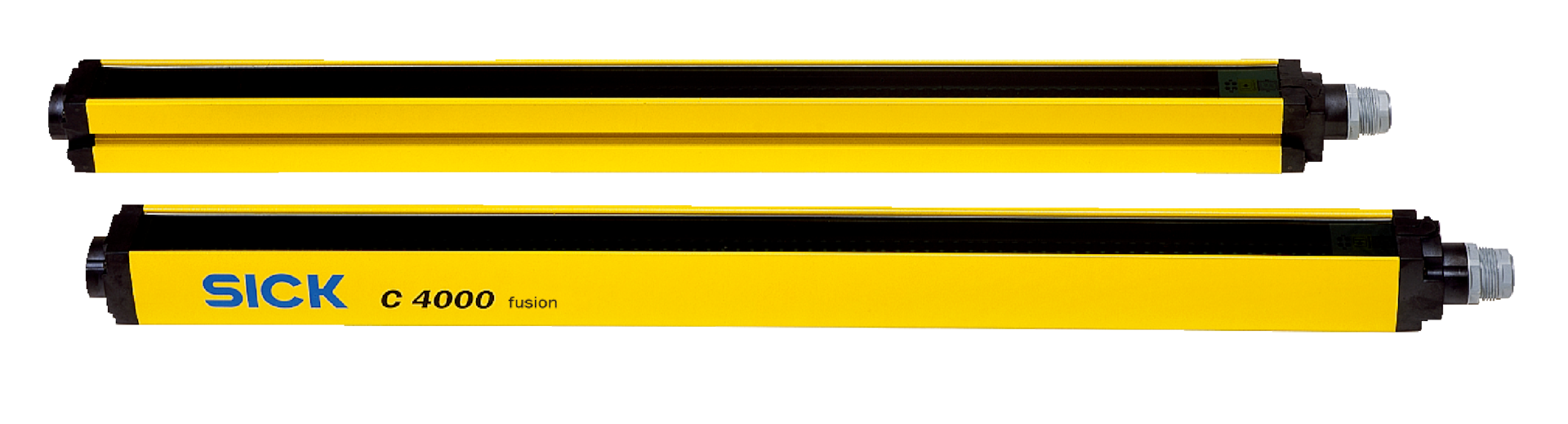

C40E-1002FY010 | Safety light curtains
The SICK C40E-1002FY010 Safety Light Curtain Receiver is designed for normal industrial environments, providing high safety integrity with Type 4 protection, SIL 3, and Category 4 compliance. It features advanced monitoring and configurable scanning range for reliable safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1002FY010 | Safety light curtains
Brand: SICK
SKU: 1043189
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, optical safety barrier, SICK safety curtain
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- System connection: Hirschmann male connector M26, 12-pin
- Conductor cross section: 0.75 mm²
- Permitted cable length: 50 m
- Configuration connection: Female connector M8, 4-pin
- Configuration method: PC with CDS software
- Display: 7-segment display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Residual ripple: ≤ 10%
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output voltage ON: 24 V DC (VS – 2.25 V DC ... VS)
- Output voltage OFF: 2 V DC
- Current per OSSD: ≤ 500 mA
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C ... +55 °C
- Storage temperature: –25 °C ... +70 °C
- Humidity: 15% ... 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz ... 55 Hz (EN 60068-2-6)
- Shock resistance: 10 g, 16 ms (EN 60068-2-27)
- Wavelength: 850 nm
- Dimensions (H x L x W): 40mm x 300mm x 48mm
- Weight: 2.3 kg
Key Features
- Type 4 safety light curtain receiver with optical synchronization
- Resolution of 20 mm and scanning range of 21 m
- Protective field height of 1,050 mm
- Multiple safety functions including protective operation, restart interlock, external device monitoring, beam coding, and configurable scanning range
- Advanced blanking functions for object and pallet detection
- Direction and sensor gap monitoring, sequence monitoring, and object entry monitoring
- Safe SICK device communication via EFI
- 7-segment display for configuration feedback
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards to ensure compliance and optimal performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing supports long service life reducing waste
- Low power consumption with efficient electronic design
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C40E-1002FY010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective monitoring.
