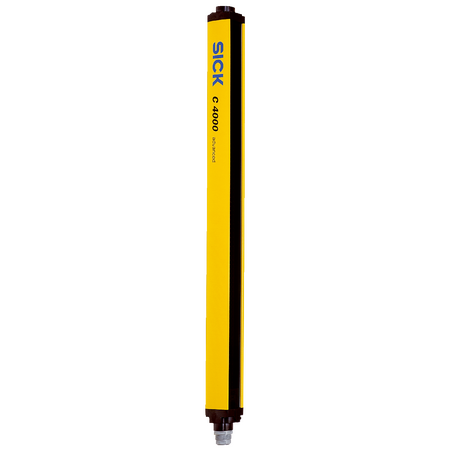

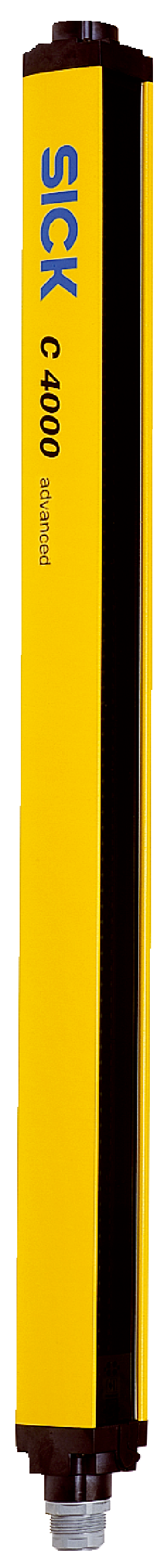

C40E-1301CB010 | Safety light curtains
The SICK C40E-1301CB010 is a Type 4 safety light curtain receiver designed for normal industrial environments, offering high safety integrity and configurable scanning range for reliable machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1301CB010 | Safety light curtains
Brand: SICK
SKU: 1018788
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, machine safeguarding light curtain
Technical Specifications
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1,350 mm
- Response time: 22 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15*10^-9 to 63*10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Current capacity per OSSD: ≤ 500 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 40mm x 350mm x 48mm
- Weight: 2.85 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance level PL e (EN ISO 13849)
- Protective field height of 1,350 mm with 14 mm resolution
- Scanning range up to 10 m with optical synchronization
- Response time of 22 ms
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass and operating mode switching in combination with UE402
- Hirschmann male connector M26, 12-pin system connection
- 7-segment display for configuration and diagnostics
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure compliance and optimal operation.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental impacts
- Durable aluminum housing supports long service life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-1301CB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity machine safeguarding.
