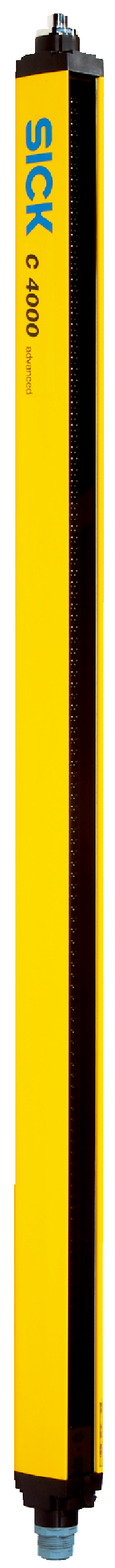

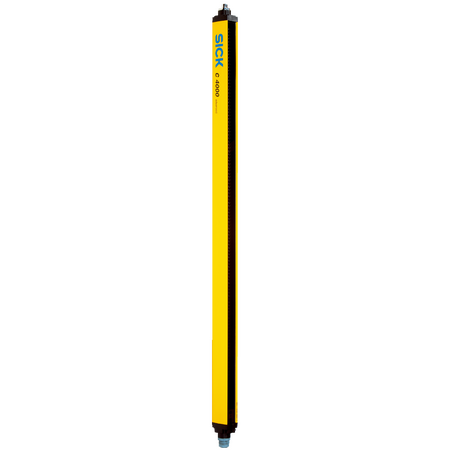

C40E-1303DB040 | Safety light curtains
The SICK C40E-1303DB040 Safety Light Curtain Receiver is designed for normal industrial environments, providing high safety integrity with Type 4 classification, SIL 3, and Category 4 compliance. It features a 21 m scanning range and 1,350 mm protective field height.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1303DB040 | Safety light curtains
Brand: SICK
SKU: 1029030
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor, C40E safety curtain
Technical Specifications
- Application: Normal industrial environment
- System part: Receiver
- Resolution: 30 mm
- Scanning range: 21 m
- Protective field height: 1,350 mm
- Response time: 13 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15*10^-9 to 63*10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Output type: 2 PNP semiconductors, short-circuit protected
- Switching voltage ON: 24 V DC (VS–2.25 V DC ... VS)
- Switching voltage OFF: ≤ 2 V DC
- Current capacity per OSSD: ≤ 500 mA
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Residual ripple: ≤ 10%
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 40mm x 1350mm x 48mm
- Weight: 2.85 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Resolution of 30 mm with a scanning range of 21 m
- Protective field height of 1,350 mm
- Response time of 13 ms
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Interfaces include Hirschmann male connector M26 (12-pin), female connector M12 (8-pin), and female connector M8 (4-pin)
- 7-segment display for configuration and diagnostics
- Housing made of aluminum extruded profile with IP65 rating
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental hazards
- Durable aluminum housing supports long product life reducing waste
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C40E-1303DB040 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity safety light curtains.
