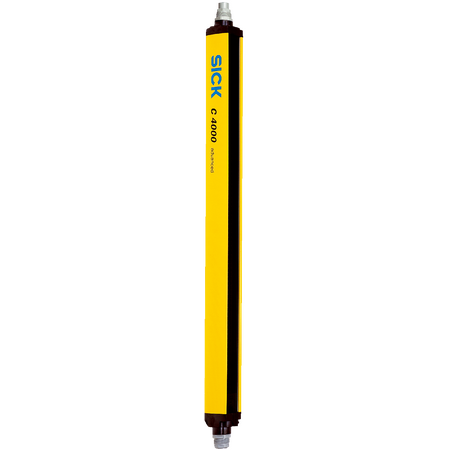

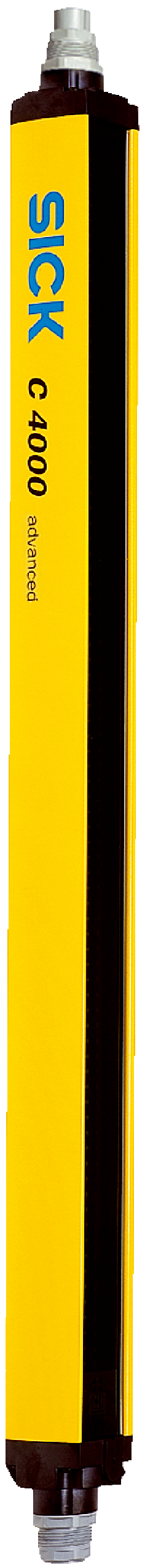

C40E-1304DB010 | Safety light curtains
The SICK C40E-1304DB010 safety light curtain receiver is designed for normal industrial environments, offering high safety integrity with Type 4 protection, SIL 3, and Category 4 compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1304DB010 | Safety light curtains
Brand: SICK
SKU: 1018867
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor
Technical Specifications
- Resolution: 40 mm
- Scanning range: 21 m
- Protective field height: 1,350 mm
- Response time: 12 ms
- Synchronization: Optical synchronisation
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15*10^-9 to 63*10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in fault: At least one OSSD is OFF
- System connection: Hirschmann male connector M26, 12-pin
- Extension connection: Hirschmann female connector M26, 12-pin
- Configuration connection: Female connector M8, 4-pin
- Configuration method: PC with CDS software
- Display elements: 7-segment display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Residual ripple: ≤ 10%
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS–2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 500 mA
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C ... +55 °C
- Storage temperature: –25 °C ... +70 °C
- Air humidity: 15% ... 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz ... 55 Hz (EN 60068-2-6)
- Shock resistance: 10 g, 16 ms (EN 60068-2-27)
- Wavelength: 850 nm
- Dimensions (H x L x W): 40mm x 350mm x 48mm
- Weight: 2.85 kg
Key Features
- Protective operation with restart interlock and external device monitoring (EDM)
- Beam coding and configurable scanning range
- Fixed and floating blanking options
- Emergency stop/bypass at the extension connection
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety systems and electrical standards to ensure compliance and safety.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable aluminum housing reduces material waste and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-1304DB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective operation.
