C40E-1502GY010 | Safety light curtains

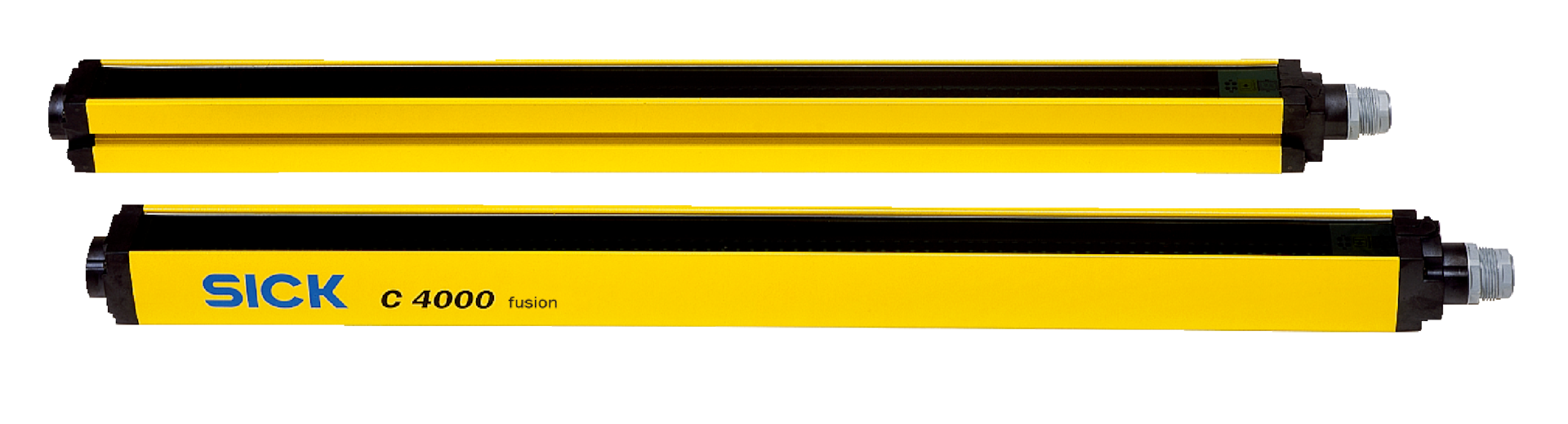

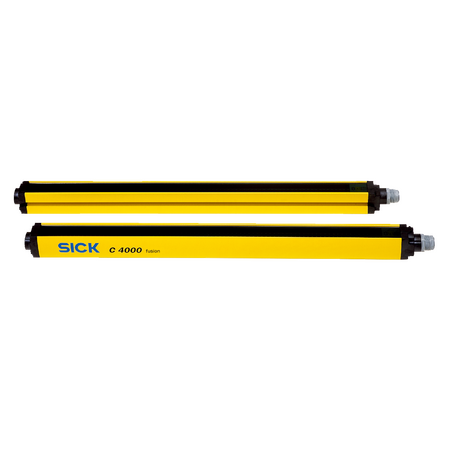

The SICK C40E-1502GY010 is a Type 4 safety light curtain receiver designed for normal industrial environments, offering high safety integrity and advanced protective functions with a 1,500 mm protective field height and 21 m scanning range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1502GY010 | Safety light curtains
Brand: SICK
SKU: 1043247
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, SICK safety sensor, C40E safety curtain
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9 (EN ISO 13849)
- Mission Time: 20 years (EN ISO 13849)
- Protective Field Height: 1,500 mm
- Scanning Range: 21 m
- Resolution: 20 mm
- Synchronization: Optical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply Voltage: 24 V DC (19.2 V ... 28.8 V)
- Current per OSSD: ≤ 500 mA
- Enclosure Rating: IP65 (EN 60529)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Housing Material: Aluminum extruded profile
- Weight: 3.14 kg
- Dimensions (H x L x W): 40mm x 1500mm x 48mm
- Weight: 3.14 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Optical synchronization
- Protective field height of 1,500 mm
- Scanning range up to 21 m
- Resolution of 20 mm
- Multiple safety functions including protective operation, restart interlock, external device monitoring, beam coding, and configurable scanning range
- Dynamic and self-teaching blanking for object and pallet detection
- Direction monitoring and virtual photoelectric switches
- Emergency stop/bypass at extension connection
- Safe SICK device communication via EFI
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental impacts
- Durable aluminum housing supports long service life reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK C40E-1502GY010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity safety light curtains.
