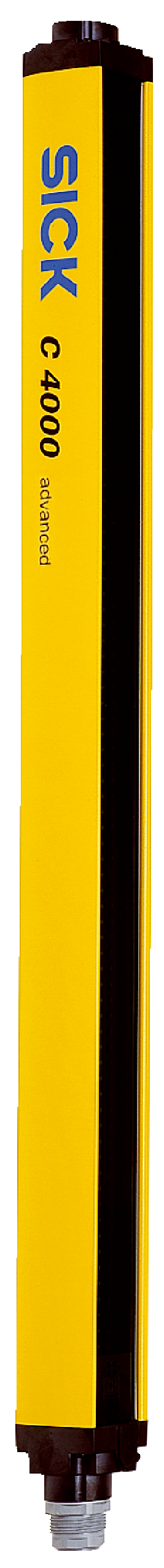

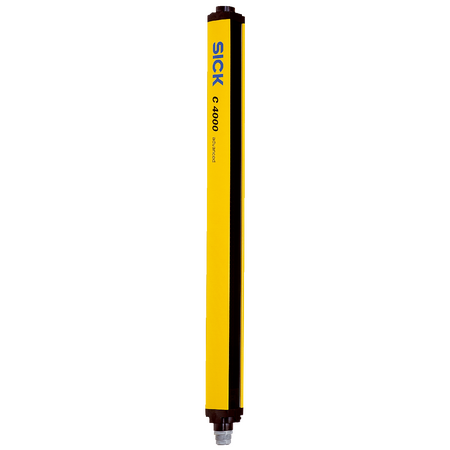

C40E-1601CB010 | Safety light curtains
The SICK C40E-1601CB010 Safety Light Curtain Receiver is designed for normal industrial environments, providing high safety integrity with Type 4 classification, SIL 3, and Category 4 compliance. It features a 14 mm resolution, 10 m scanning range, and robust mechanical and electrical specifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1601CB010 | Safety light curtains
Brand: SICK
SKU: 1018790
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, SICK safety sensor, C40E safety curtain
Technical Specifications
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1,650 mm
- Response time: 24 ms
- Synchronization: Optical
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15*10^-9 to 63*10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state: At least one OSSD OFF
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 500 mA
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Housing material: Aluminum extruded profile
- Weight: 3.42 kg
- Dimensions (H x L x W): 40mm x 1650mm x 48mm
- Weight: 3.42 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- 14 mm resolution with 10 m scanning range
- Protective field height of 1,650 mm
- Response time of 24 ms
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, reduced resolution, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- Hirschmann male connector M26, 12-pin system connection
- 7-segment display for configuration
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Professional installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing supports long service life reducing waste
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK C40E-1601CB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity safety light curtains.
