C40E-1801DB040 | Safety light curtains

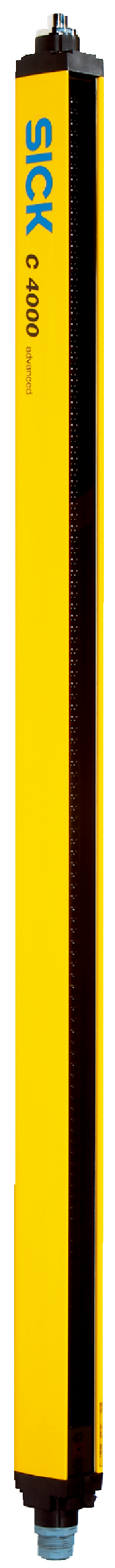

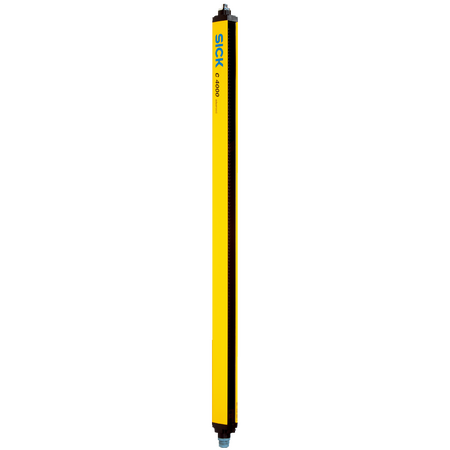

The SICK C40E-1801DB040 is a Type 4 safety light curtain receiver designed for normal industrial environments, offering high safety integrity with SIL 3 and Category 4 compliance, featuring a 14 mm resolution and 10 m scanning range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1801DB040 | Safety light curtains
Brand: SICK
SKU: 1028999
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, SICK safety sensor, C40E safety curtain
Technical Specifications
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1800 mm
- Response time: 26 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9 to 63 * 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Current per OSSD: ≤ 500 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 40mm x 1800mm x 48mm
- Weight: 3.71 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- 14 mm resolution with 10 m scanning range
- Protective field height of 1800 mm
- Response time of 26 ms
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, reduced resolution, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- 7-segment display for status indication
- Hirschmann male connector M26, 12-pin system connection
- Extension connection via female connector M12, 8-pin
- Configuration via PC with CDS software
- Housing made of aluminum extruded profile
- IP65 rated enclosure for dust and water protection
- Operating temperature range 0 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing extends product life reducing waste
- Energy efficient 24 V DC operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-1801DB040 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity light curtain protection.
