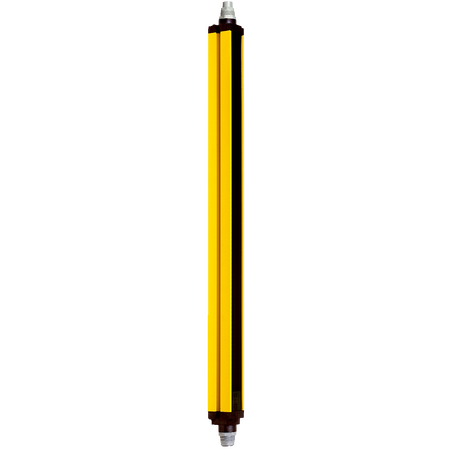

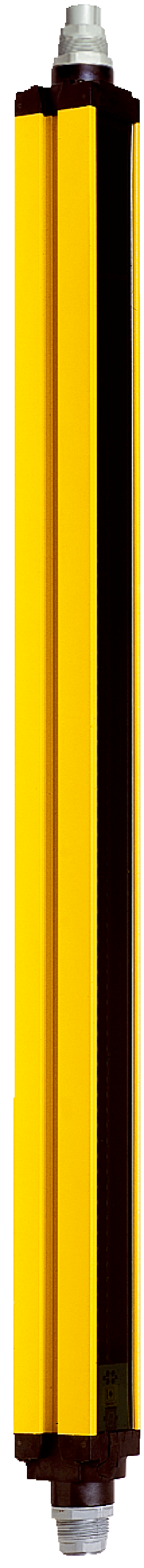

C40S-0901DA010 | Safety light curtains
The SICK C40S-0901DA010 Safety Light Curtain is a Type 4 industrial safety device designed for normal industrial environments, offering high safety integrity and reliable protective functions with a 10 m scanning range and 900 mm protective field height.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-0901DA010 | Safety light curtains
Brand: SICK
SKU: 1018696
Alternatively Known As: Safety light curtain, industrial safety sensor, protective light barrier, safety sensor curtain
Technical Specifications
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 900 mm
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9 to 63 * 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD OFF
- System connection: Hirschmann male connector M26, 12-pin
- Extension connection: Hirschmann female connector M26, 12-pin
- Display: 7-segment
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Residual ripple: ≤ 10%
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz (EN 60068-2-6)
- Shock resistance: 10 g, 16 ms (EN 60068-2-27)
- Wavelength: 850 nm
- Dimensions (H x L x W): 900mm x 40mm x 48mm
- Weight: 1.96 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 compliant (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- 14 mm resolution with 10 m scanning range
- Protective field height of 900 mm
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- 7-segment display for status indication
- Hirschmann M26 connectors for system and extension connections
- Protection class III (IEC 61140) with 24 V DC supply voltage
- Robust aluminum extruded profile housing
- IP65 rated enclosure for dust and water protection
- Operating temperature range 0 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy-efficient 24 V DC operation minimizes power consumption
- IP65 rating ensures long-term reliability in harsh environments reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40S-0901DA010 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity protective light curtains.
