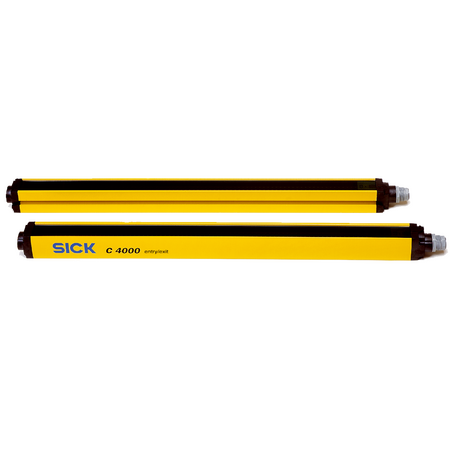

C40S-1002CI010 | Safety light curtains

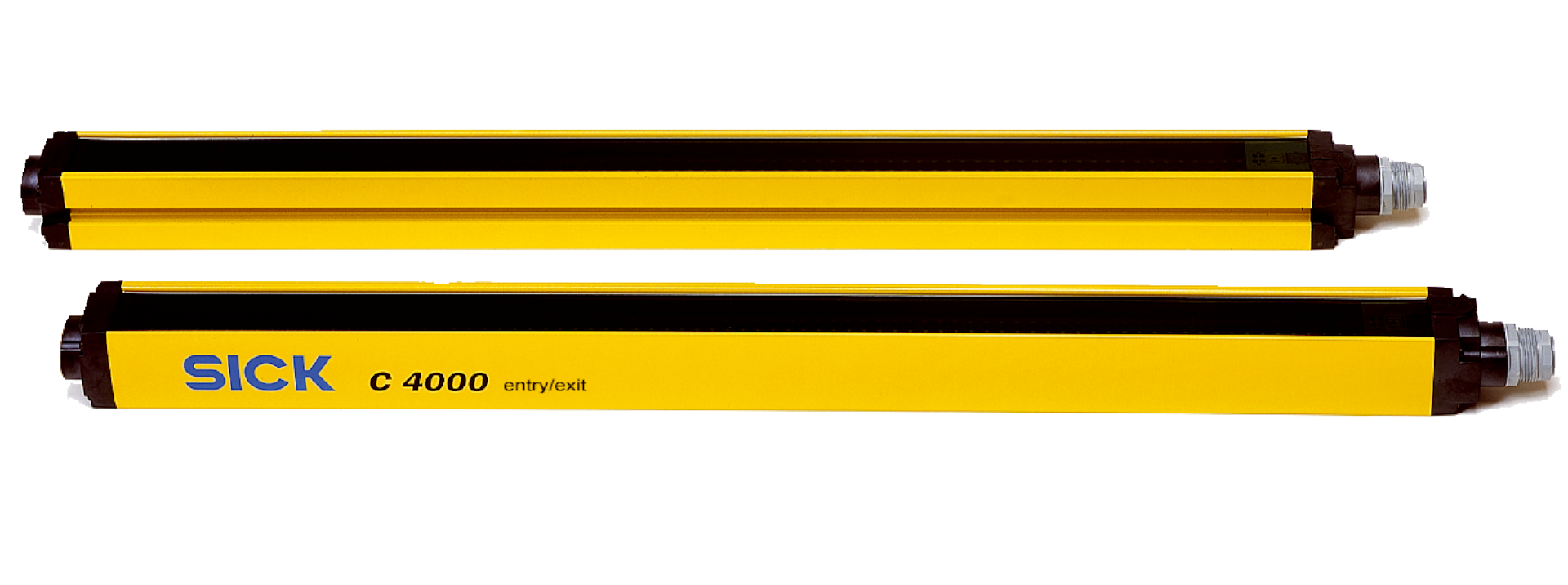

The SICK C40S-1002CI010 Safety Light Curtain is a robust Type 4 safety device designed for normal industrial environments, offering high safety integrity and reliable protective operation with a scanning range of 19 meters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-1002CI010 | Safety light curtains
Brand: SICK
SKU: 1024044
Alternatively Known As: Safety light curtain, industrial safety sensor, protective light barrier, safety sensor curtain
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD is OFF
- Resolution: 20 mm
- Scanning range: 19 m
- Protective field height: 1,050 mm
- Synchronization: Optical
- System connection: Hirschmann male connector M26, 12-pin
- Configuration connection: Female connector M8, 4-pin
- Configuration method: PC with CDS software
- Display: 7-segment display
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Residual ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Housing material: Aluminum extruded profile
- Weight: 2.25 kg
- Dimensions (H x L x W): 1050mm x 40mm x 48mm
- Weight: 2.25 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance level PL e (EN ISO 13849)
- Resolution of 20 mm with a scanning range of 19 m
- Protective field height of 1,050 mm
- Optical synchronization
- Safe SICK device communication via EFI
- Beam coding for enhanced safety
- 7-segment display for easy diagnostics
- Hirschmann male connector M26, 12-pin system connection
- Configuration via PC with CDS software
- Protection class III (IEC 61140)
- Enclosure rating IP65 (IEC 60529)
- Operating temperature range 0 °C to +55 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste and extends product life
- Energy-efficient operation with low power consumption
- Long mission time of 20 years reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C40S-1002CI010 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity protective devices.
