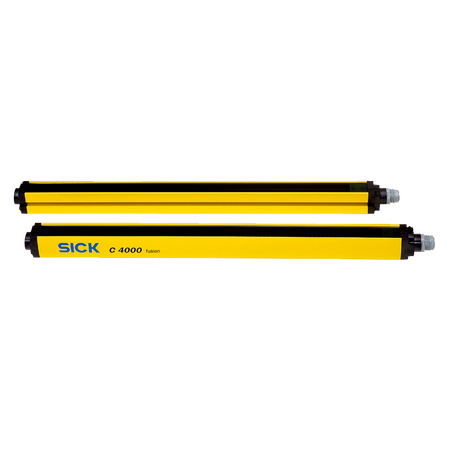

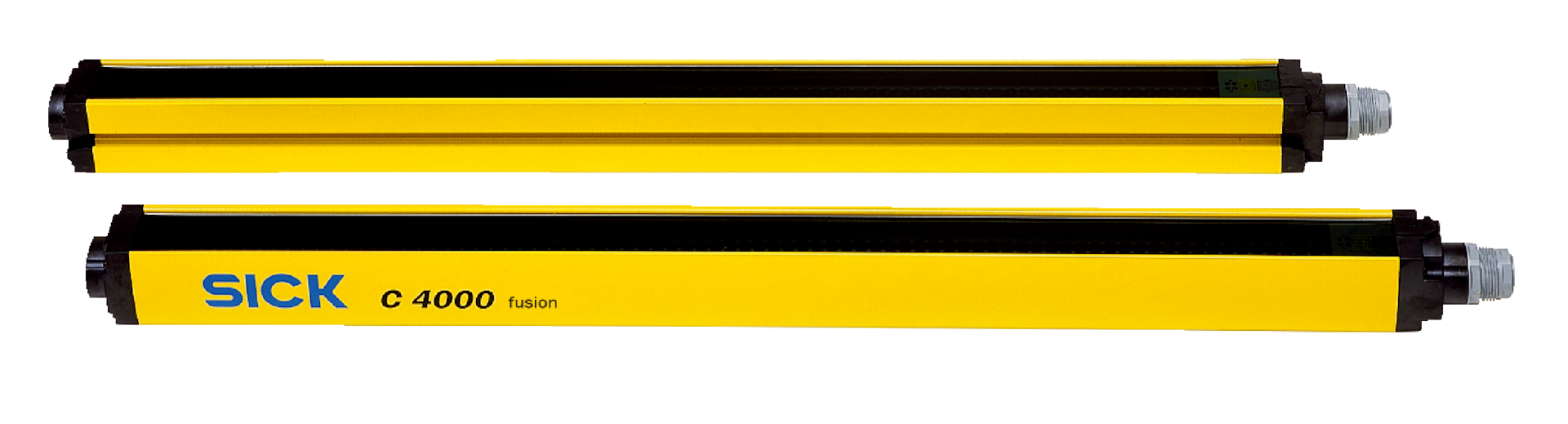

C40S-1002FY010 | Safety light curtains
The SICK C40S-1002FY010 Safety Light Curtain Sender is designed for normal industrial environments, offering high safety integrity with Type 4 protection and SIL 3 certification, featuring advanced monitoring and alignment functions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-1002FY010 | Safety light curtains
Brand: SICK
SKU: 1043187
Alternatively Known As: Safety light curtain sender, industrial safety light curtain, SICK light curtain sensor
Technical Specifications
- Resolution: 20 mm
- Scanning range: 21 m
- Protective field height: 1050 mm
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in fault: At least one OSSD is OFF
- System connection: Hirschmann male connector M26, 12-pin
- Conductor cross section: 0.75 mm²
- Permitted cable length: 50 m
- Configuration connection: Female connector M8, 4-pin
- Configuration method: PC with CDS software
- Display elements: 7-segment display
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Residual ripple: ≤ 10%
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wavelength: 850 nm
- Light source: LED
- Laser class: 1 (IEC 60825-1), eye-safe
- Type of light: Visible red light
- Dimensions (H x L x W): 40mm x 1050mm x 48mm
- Weight: 2.25 kg
Key Features
- Optical synchronization
- Integrated laser alignment aid
- Configurable scanning range
- Multiple sampling
- Direction monitoring
- Sensor gap monitoring
- Sequence monitoring
- Object entry monitoring
- Detection of geometrically even objects
- Safe SICK device communication via EFI
- Restart interlock
- External device monitoring (EDM)
- Beam coding
- Fixed blanking and dynamic blanking for object pattern recognition
- Self-teaching dynamic blanking for goods and pallet detection
Professional Installation Requirements
- Professional installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable aluminum housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40S-1002FY010 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications requiring high integrity light curtain systems.
