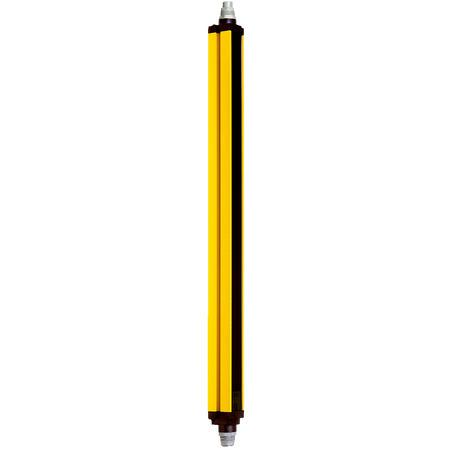

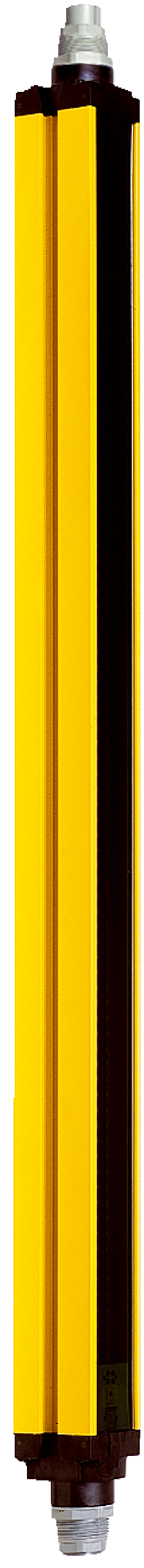

C40S-1004DA010 | Safety light curtains
The SICK C40S-1004DA010 Safety Light Curtain is a Type 4 industrial safety device designed for normal industrial environments, offering high safety integrity and configurable scanning range with robust IP65 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-1004DA010 | Safety light curtains
Brand: SICK
SKU: 1018767
Alternatively Known As: Safety light curtain, industrial safety sensor, optical safety barrier, machine safety light curtain
Technical Specifications
- Resolution: 40 mm
- Scanning range: 21 m
- Protective field height: 1,050 mm
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9 to 63 * 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state: At least one OSSD OFF in fault
- System connection: Hirschmann male connector M26, 12-pin
- Extension connection: Hirschmann female connector M26, 12-pin
- Display: 7-segment
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Residual ripple: ≤ 10%
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz (EN 60068-2-6)
- Shock resistance: 10 g, 16 ms (EN 60068-2-27)
- Wavelength: 850 nm
- Dimensions (H x L x W): 1050mm x 48mm x 40mm
- Weight: 2.25 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 compliant (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Optical synchronization with 40 mm resolution
- Scanning range up to 21 m with protective field height of 1,050 mm
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- 7-segment display for status indication
- Hirschmann M26 connectors for system and extension connections
- Protection class III with 24 V DC supply voltage
- Robust aluminum extruded profile housing with IP65 rating
- Operating temperature range 0 °C to +55 °C
- Vibration and shock resistant according to EN standards
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental hazards
- Durable aluminum housing promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40S-1004DA010 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
