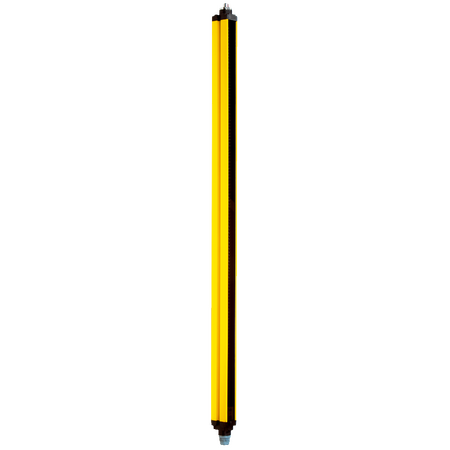

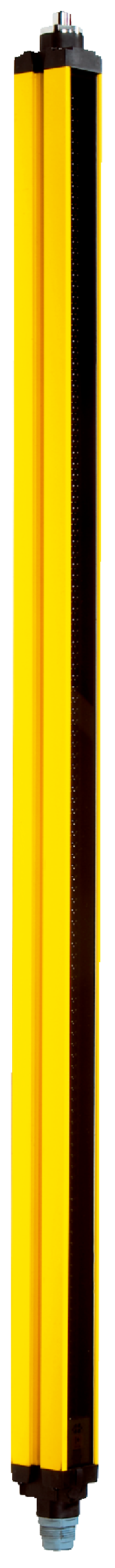

C40S-1201DA040 | Safety light curtains
The SICK C40S-1201DA040 Safety Light Curtain is a Type 4 industrial safety device designed for normal industrial environments, providing high safety integrity and reliable protective functions with a 1,200 mm protective field height and 10 m scanning range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-1201DA040 | Safety light curtains
Brand: SICK
SKU: 1028979
Alternatively Known As: Safety light curtain, industrial safety curtain, SICK safety sensor, C40S safety light barrier
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9 to 63 * 10^-9 (EN ISO 13849)
- Mission Time: 20 years (EN ISO 13849)
- Protective Field Height: 1,200 mm
- Scanning Range: 10 m
- Resolution: 14 mm
- Synchronization: Optical
- Supply Voltage: 24 V DC (19.2 V to 28.8 V)
- Residual Ripple: ≤ 10%
- Protection Class: III (IEC 61140)
- Housing Material: Aluminum extruded profile
- Enclosure Rating: IP65 (EN 60529)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Vibration Resistance: 5 g, 10 Hz to 55 Hz (EN 60068-2-6)
- Shock Resistance: 10 g, 16 ms (EN 60068-2-27)
- Wave Length: 850 nm
- Dimensions (H x L x W): 1200mm x 40mm x 48mm
- Weight: 2.53 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Optical synchronization with sender system part
- Protective field height of 1,200 mm and scanning range of 10 m
- Resolution of 14 mm
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- 7-segment display for status indication
- Hirschmann male connector M26, 12-pin system connection and female connector M12, 8-pin extension connection
- Protection class III (IEC 61140) with 24 V DC supply voltage
- Aluminum extruded profile housing with IP65 enclosure rating
- Operating temperature range 0 °C to +55 °C
- Vibration and shock resistant according to EN 60068 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40S-1201DA040 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
