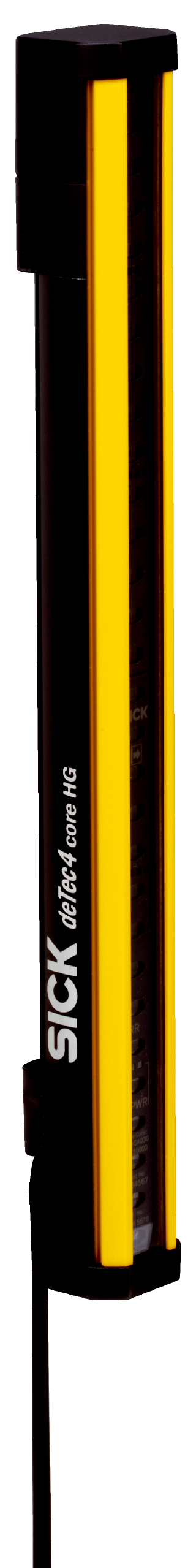

C4C-EG07510A10000 | Safety light curtains
The SICK C4C-EG07510A10000 safety light curtain receiver offers high-resolution, reliable protection for industrial environments with harsh conditions, ensuring machine safety with Type 4 certification and advanced features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EG07510A10000 | Safety light curtains
Brand: SICK
SKU: 1220379
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, machine safeguarding light curtain
Technical Specifications
- Product version: deTec4 Core HG
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 750 mm
- Response time: 13 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 2.64 W
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 750mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain receiver with 14 mm resolution
- Protective field height of 750 mm and scanning range of 10 m
- Response time of 13 ms with no blind zones
- Optical synchronization with compatible sender 1220368
- Automatic calibration of protective field width
- LED display elements for status indication
- Housing made of aluminum extruded profile with chemically prestressed float glass front screen
- Protection class IP65 and IP67 for harsh environments
- Operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding requiring optical synchronization and no blind zones
- Safety monitoring in manufacturing and automation environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low power consumption (2.64 W typical)
- Supports safer industrial environments reducing accident-related environmental impacts
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-EG07510A10000 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications in harsh environments.
