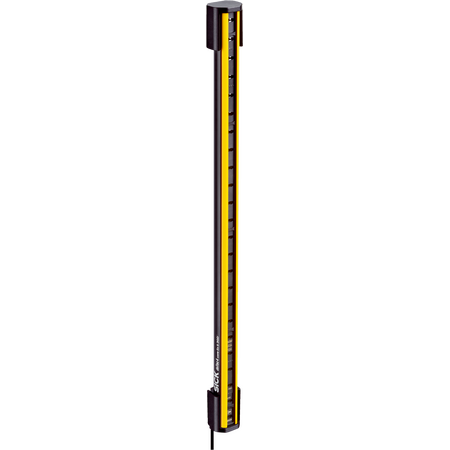

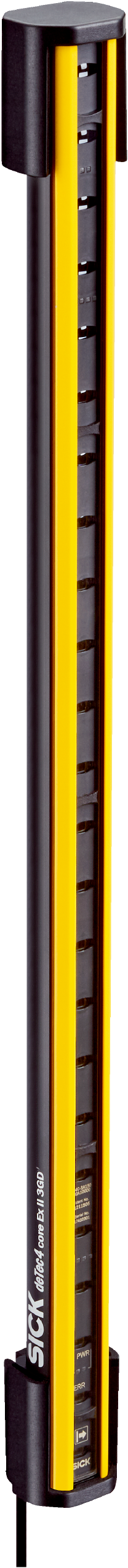

C4C-EX13510A10000 | Safety light curtains
The SICK C4C-EX13510A10000 safety light curtain is designed for use in explosive areas, providing high safety integrity with Type 4 protection, SIL 3 certification, and robust IP65/IP67 rated housing for reliable machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4C-EX13510A10000 | Safety light curtains
Brand: SICK
SKU: 1220333
Alternatively Known As: Explosion Proof Safety Light Curtain, Intrinsically Safe Light Curtain, ATEX Safety Light Barrier
Technical Specifications
- Product version: deTec4 Core Ex II 3GD
- Ex-approvals: ATEX II 3G Ex ec op is IIC T4 Gc, II 3D Ex tc IIIC T135°C Dc
- System part: Receiver compatible with sender 1220320
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1,350 mm
- Response time: 17 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 3.6 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 and IP67
- Operating temperature: 0°C to +55°C
- Storage temperature: -30°C to +70°C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 1350mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Designed for explosive areas with ATEX gas and dust approvals
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- 14 mm resolution with 10 m scanning range and 1,350 mm protective field height
- No blind zones and optical synchronization for reliable detection
- Automatic calibration of protective field width
- Robust aluminum extruded profile housing with IP65/IP67 protection
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with explosion protection standards and electrical safety regulations.
Applications
- Industrial safety in explosive environments
- Machine safeguarding in hazardous zones
- Automation safety systems requiring explosion protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and environmental hazards
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4C-EX13510A10000 safety light curtain is available for immediate purchase, ideal for industrial safety applications in explosive environments.
