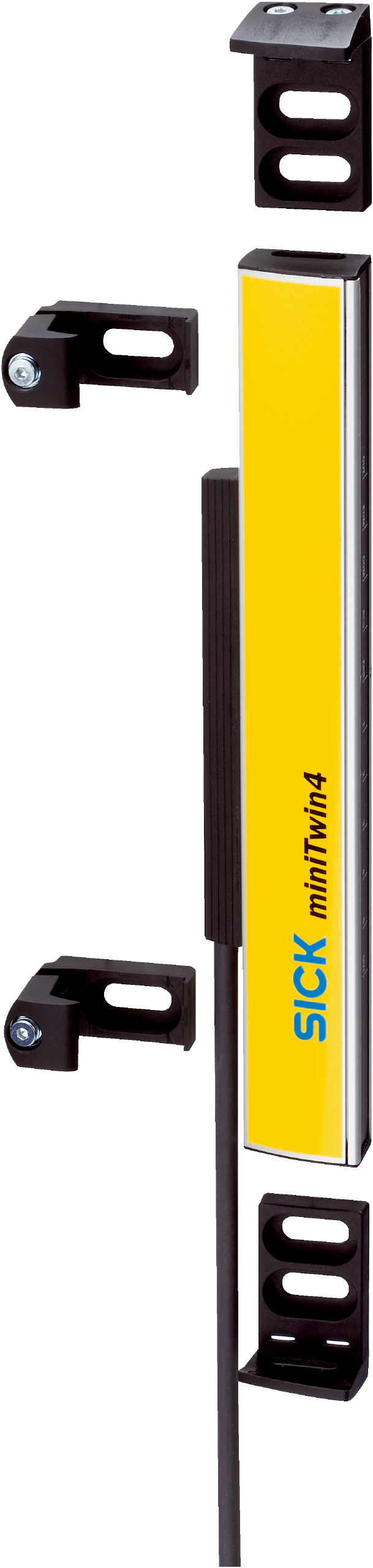

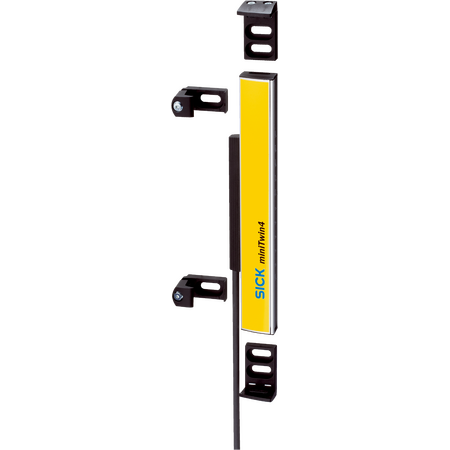

C4MT-01214ABB03BE0 | Safety light curtains
The SICK C4MT-01214ABB03BE0 Safety Light Curtains provide high-performance industrial safety guarding with Type 4 safety, SIL 3 integrity, and robust aluminum housing for reliable machine access protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4MT-01214ABB03BE0 | Safety light curtains
Brand: SICK
SKU: 1207094
Alternatively Known As: Safety light curtain, safety sensor curtain, industrial safety light barrier, machine safety curtain
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin4 standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 120 mm
- Response time: ≤ 14 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD OFF
- Restart interlock and external device monitoring included
- System connection: Male connector M12, 5-pin, cable length 160 mm
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 50 g
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 32mm x 160mm x 15mm
- Weight: 0.1 kg
Key Features
- Twin-Stick system part
- MiniTwin4 standalone or cascade usage
- Mounting with C-fix or L-fix bracket
- 14 mm resolution
- Scanning range 0 m to 5 m typical
- Protective field height 120 mm
- Response time ≤ 14 ms
- Optical synchronization without separate synchronization
- Type 4 safety (IEC 61496-1)
- SIL 3 safety integrity level (IEC 61508)
- Category 4 (EN ISO 13849)
- Performance level PL e (EN ISO 13849)
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection
- Hard wired configuration
- LED display elements
- Protection class III (EN 61140)
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output, short-circuit protected
- Housing made of aluminum alloy ALMGSI 0.5
- IP65 enclosure rating
- Operating temperature -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial safety guarding
- Machine access protection
- Automation safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK C4MT-01214ABB03BE0 Safety Light Curtains are available for immediate purchase, ideal for industrial safety guarding and machine access protection applications.
