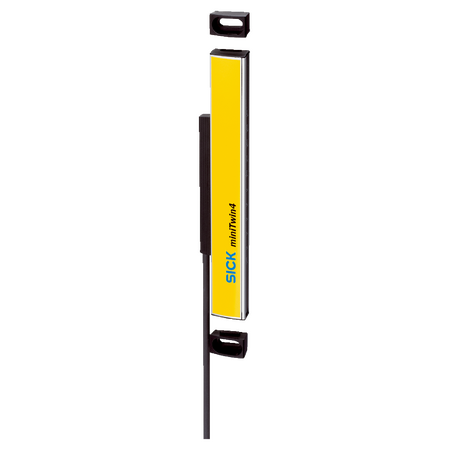

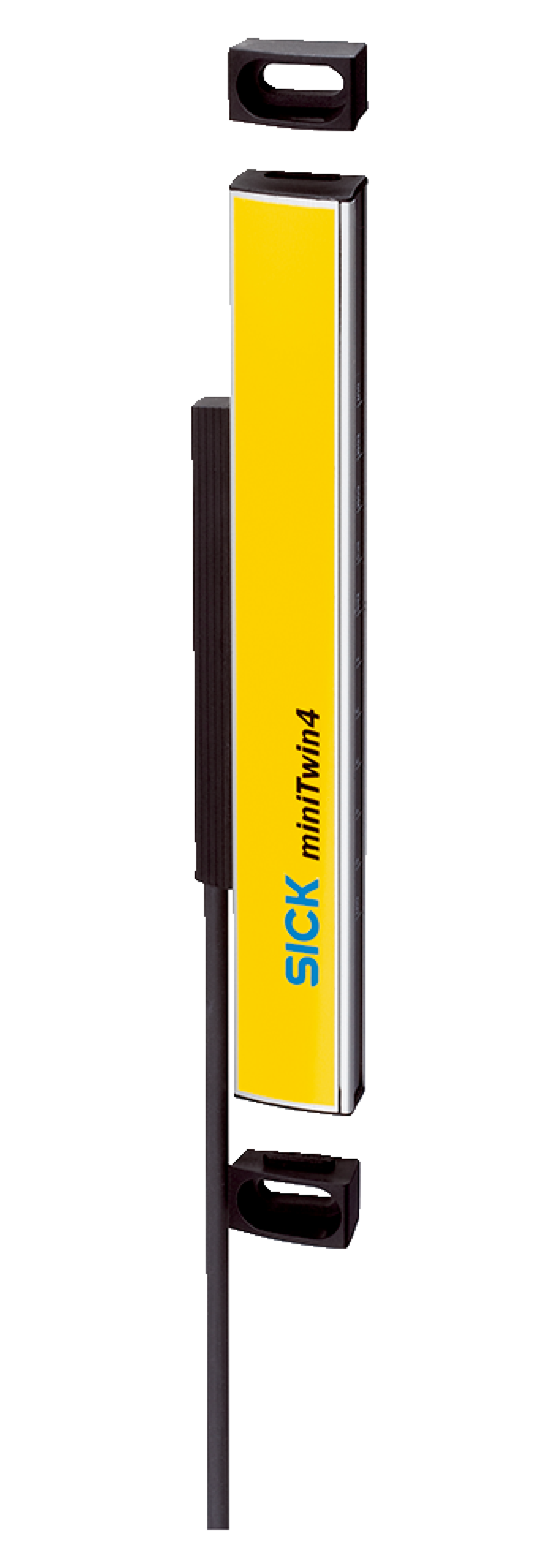

C4MT-02414ABB03DB0 | Safety light curtains
The SICK C4MT-02414ABB03DB0 safety light curtain is a Type 4 twin-stick device designed for industrial safety applications, offering high reliability with SIL 3 and PL e certifications, featuring a 14 mm resolution and a scanning range up to 5 meters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4MT-02414ABB03DB0 | Safety light curtains
Brand: SICK
SKU: 1206954
Alternatively Known As: Safety light curtain, Twin-stick safety sensor, Industrial safety curtain, Presence detection light curtain
Technical Specifications
- System part: 1 Twin-Stick
- Mounting system type: O-fix bracket
- Resolution: 14 mm
- Protective field height: 240 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Response time: ≤ 14 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Restart interlock and external device monitoring included
- System connection: Male connector M12, 5-pin, 350 mm cable
- Power supply: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected
- Output current per OSSD: ≤ 300 mA
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65
- Operating temperature: -20°C to +55°C
- Storage temperature: -25°C to +70°C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 240mm x 32mm x 15mm
- Weight: 0.1 kg
Key Features
- Type 4 safety light curtain compliant with IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- 14 mm resolution with protective field height of 240 mm
- Scanning range from 0 m to 5 m typical
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output switching devices
- IP65 rated enclosure for harsh environments
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Industrial safety guarding for machinery
- Automation systems requiring presence detection
- Protection of personnel in hazardous zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum alloy housing reduces material waste
- Energy-efficient operation with low power consumption
- Long service life reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK C4MT-02414ABB03DB0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
