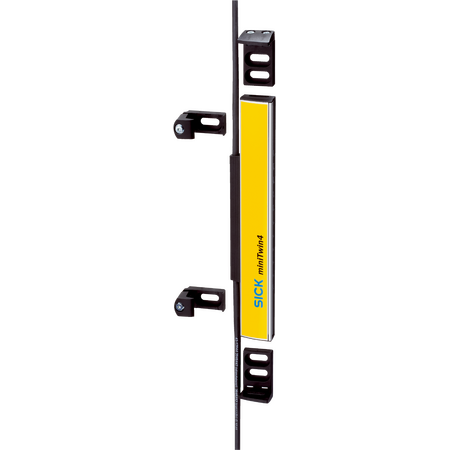

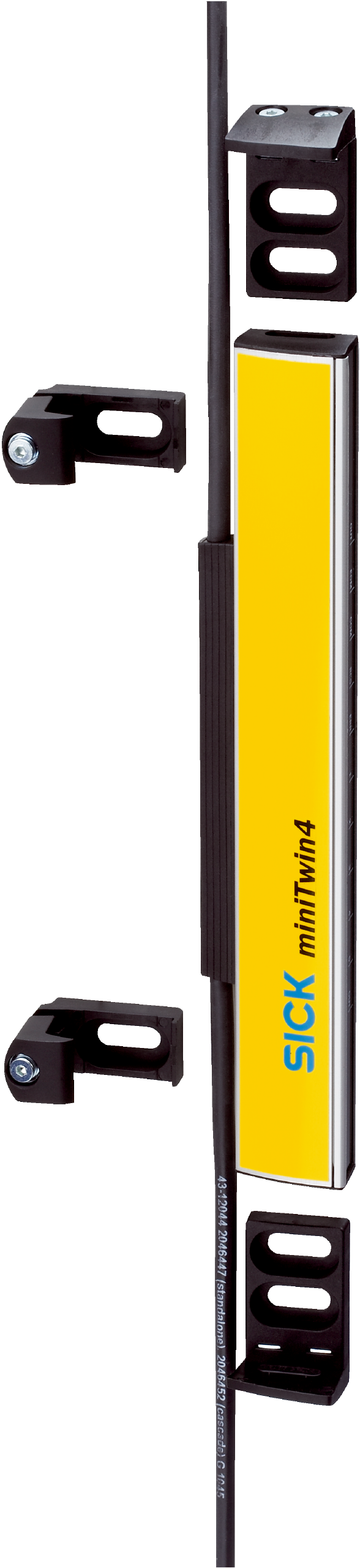

C4MT-03034ABB04DE0 | Safety light curtains
The SICK C4MT-03034ABB04DE0 Safety Light Curtains provide high-performance, reliable safety solutions with a 34 mm resolution and up to 5 m scanning range, suitable for industrial safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4MT-03034ABB04DE0 | Safety light curtains
Brand: SICK
SKU: 1207303
Alternatively Known As: Safety light curtain, safety sensor curtain, industrial safety light barrier, machine safety light curtain
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.3 x 10^-8 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in fault: At least one OSSD OFF
- System connection: Male connector M12, 5-pin with 350 mm cable
- Extension connection: Female connector M12, 5-pin with 350 mm cable
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Output signal: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Current capacity per OSSD: ≤ 300 mA
- Protection class: III (EN 61140)
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wavelength: 850 nm
- Dimensions (H x L x W): 32mm x 350mm x 15mm
- Weight: 0.115 kg
Key Features
- Twin-Stick system part
- MiniTwin4 host for 2- or 3-device cascade and middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution of 34 mm
- Scanning range minimum 0 m to 4 m, typical 0 m to 5 m
- Protective field height of 300 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements
- Short-circuit protected, cross-circuit monitored PNP semiconductor output signals
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety light curtain systems and relevant safety standards to ensure compliance and optimal performance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 3 A power usage
- Durable aluminum alloy housing for long product life
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK C4MT-03034ABB04DE0 Safety Light Curtains are available for immediate purchase, ideal for industrial safety and machinery protection applications.
