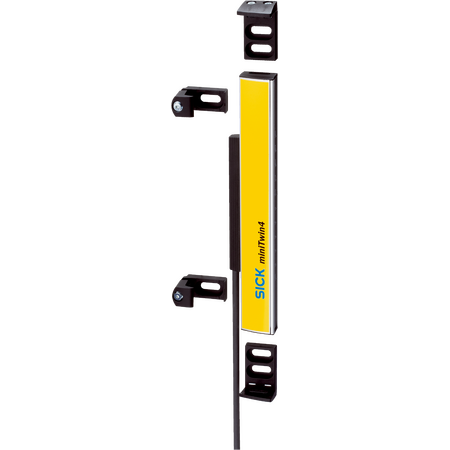

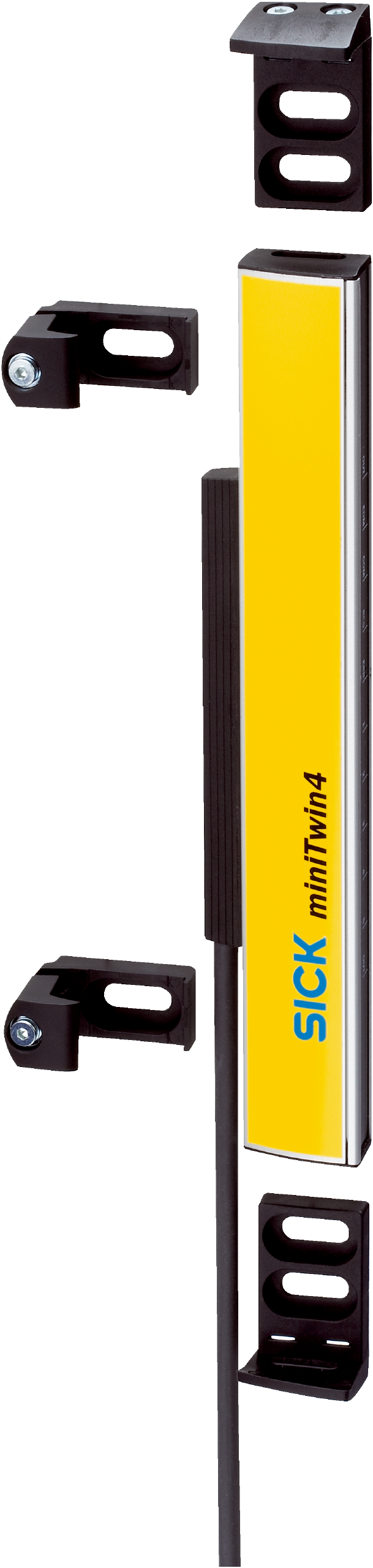

C4MT-07824ABB03FE0 | Safety light curtains
The SICK C4MT-07824ABB03FE0 Safety Light Curtain is a Type 4 safety device designed for industrial applications, providing high safety integrity with SIL 3 and Category 4 ratings, featuring a 780 mm protective field height and robust IP65 aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4MT-07824ABB03FE0 | Safety light curtains
Brand: SICK
SKU: 1207234
Alternatively Known As: Safety light curtain, industrial safety curtain, machine safety sensor, light barrier safety device
Technical Specifications
- System part: 1 Twin-Stick
- Usage: standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 4 m, Typical 0 m to 5 m
- Protective field height: 780 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 4.3 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Restart interlock: Yes
- External device monitoring (EDM): Yes
- Beam coding: Automatic
- System connection: Male connector M12, 5-pin
- Cable length: 700 mm
- Permitted cable length: ≤ 20 m
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20°C to +55°C
- Storage temperature: -25°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 780mm x 32mm x 15mm
- Weight: 0.28 kg
Key Features
- Type 4 safety light curtain with SIL 3 and Category 4 safety ratings
- Twin-Stick system with 24 mm resolution
- Scanning range from 0 m to 5 m typical
- Protective field height of 780 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- IP65 rated enclosure for robust protection
- Operating temperature range from -20°C to +55°C
- Shock resistance of 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing plants and automated production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable aluminum alloy housing reduces material waste
- Low power consumption with ≤ 3 A current draw
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK C4MT-07824ABB03FE0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications in manufacturing and automation environments.
