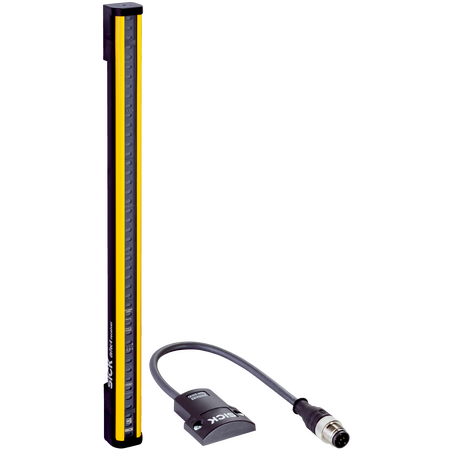

C4P-EA06031CA0 | Safety light curtains
The SICK C4P-EA06031CA0 safety light curtain receiver offers high-performance industrial safety with Type 4 protection, SIL 3 certification, and robust IP65/IP67 rated housing for reliable personnel protection in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-EA06031CA0 | Safety light curtains
Brand: SICK
SKU: 1116218
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, SICK safety sensor, deTec4 light curtain
Technical Specifications
- Product version: deTec4
- Application: Normal industrial environment
- System part: Receiver
- Resolution: 30 mm
- Scanning range: 30 m
- Protective field height: 600 mm
- Response time: 10 ms (Uncoded), 15 ms (coded)
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 15.3 x 10^-9 per hour
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin
- Configuration: DIP switch on system plug
- Display: LEDs and NFC
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 3.36 W
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65/IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 600mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Resolution of 30 mm and protective field height of 600 mm
- Scanning range up to 30 m with no blind zones
- Optical synchronization and beam coding for reliable operation
- Automatic calibration of protective field width
- LED display elements and NFC for configuration and status monitoring
- Robust aluminum extruded profile housing with IP65/IP67 protection
- Short response time of 10 ms (uncoded) and 15 ms (coded)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in normal industrial environments requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 3.36 W reduces energy usage
- Long mission time of 20 years supports sustainable operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4P-EA06031CA0 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance with safety standards.
