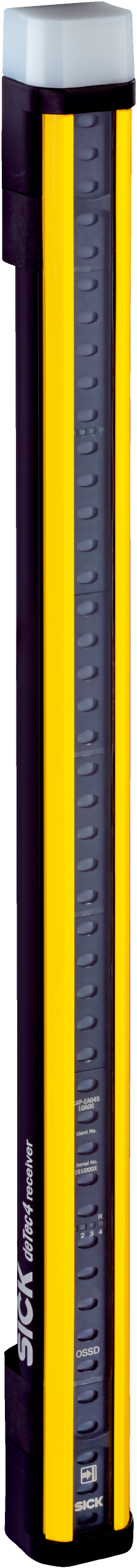

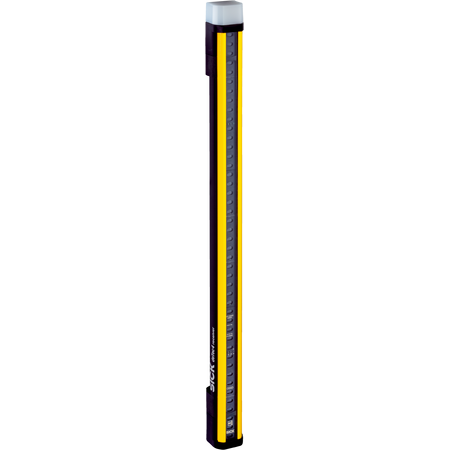

C4P-EA12011D00 | Safety light curtains
The SICK C4P-EA12011D00 safety light curtain receiver offers high-performance personnel protection in industrial environments with advanced safety features and robust design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-EA12011D00 | Safety light curtains
Brand: SICK
SKU: 1220115
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, SICK safety sensor, deTec4 light curtain
Technical Specifications
- Product version: deTec4
- System part: Receiver
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 1,200 mm
- Response time: 16 ms (Uncoded), 34 ms (coded)
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guests: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 4.42 W typical
- Output type: 2 PNP semiconductors, short-circuit protected
- Output current per OSSD: ≤ 500 mA
- Application diagnostic output: PNP semiconductor, short-circuit protected
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 1200mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Resolution of 14 mm and scanning range up to 20 m
- Protective field height of 1,200 mm
- Optical synchronization with integrated LED end cap
- Automatic calibration of protective field width
- Beam coding and restart interlock for enhanced safety
- External device monitoring (EDM) and cascading capability
- Smart presence detection and differentiation between person and material
- 2-signal muting and Smart Box Detection
- LED display elements with synchronization status indication
- IO-Link and Near Field Communication (NFC) for configuration and diagnostics
Professional Installation Requirements
- Installation must be performed by qualified personnel trained in safety systems to ensure compliance with safety standards and proper integration.
Applications
- Industrial safety for machinery and automated systems
- Normal industrial environments requiring personnel protection
- Use in manufacturing plants, assembly lines, and robotic cells
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable aluminum housing reduces material waste and extends product life
- Supports safer industrial environments reducing accident-related environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C4P-EA12011D00 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications requiring high reliability and advanced safety features.
