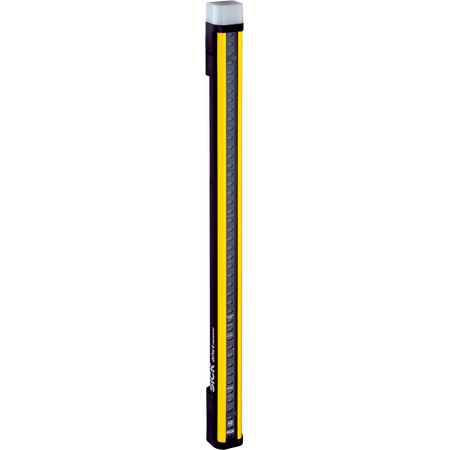

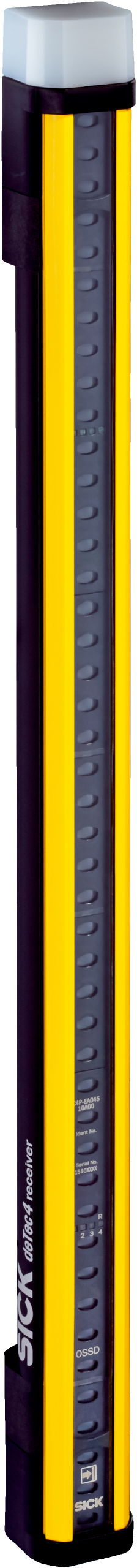

C4P-EA16511D00 | Safety light curtains
The SICK C4P-EA16511D00 safety light curtain receiver offers high-performance industrial safety with Type 4 protection, SIL 3 and PL e certification, suitable for normal industrial environments with a protective field height of 1,650 mm and advanced features including smart presence detection and cascading.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-EA16511D00 | Safety light curtains
Brand: SICK
SKU: 1220118
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor, deTec4 light curtain
Technical Specifications
- Product version: deTec4
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 1,650 mm
- Response time: 19 ms (Uncoded), 42 ms (coded)
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 4.92 W
- Output type: 2 PNP semiconductors, short-circuit protected
- Output current per OSSD: ≤ 500 mA
- Application diagnostic output: PNP semiconductor, short-circuit protected, ≤ 100 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65/IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 1650mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Protective field height of 1,650 mm and scanning range up to 20 m
- Optical synchronization with integrated LED end cap
- Automatic calibration of protective field width and beam coding
- Features smart presence detection, 2-signal muting, and Smart Box Detection
- Supports cascading and external device monitoring (EDM)
- Equipped with IO-Link and Near Field Communication (NFC) for configuration and diagnostics
- LED display elements for synchronization status and diagnostics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical installations to ensure compliance and optimal safety performance.
Applications
- Industrial safety for machinery and automated systems
- Normal industrial environments requiring protective light curtains
- Safety monitoring in manufacturing and production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing ensures long product life and reduced waste
- Low power consumption (4.92 W typical) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4P-EA16511D00 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications in manufacturing and automation environments.
