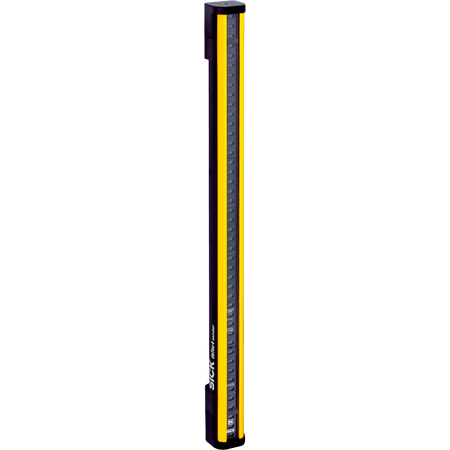

C4P-SA09011C00 | Safety light curtains

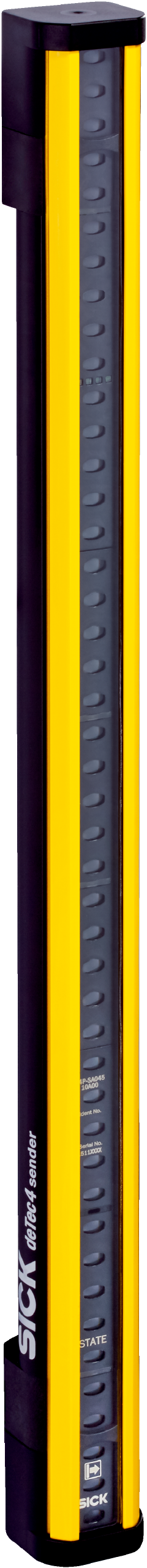

The SICK C4P-SA09011C00 safety light curtain sender from the deTec4 series offers high safety performance with a 900 mm protective field height, 14 mm resolution, and robust IP65/IP67 rated aluminum housing for industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SA09011C00 | Safety light curtains
Brand: SICK
SKU: 1220643
Alternatively Known As: Safety light curtain sender, industrial safety light barrier, machine safety light curtain, SICK deTec4 safety sensor
Technical Specifications
- Product version: deTec4
- System part: Sender
- Resolution: 14 mm
- Scanning range: 2.5 m
- Protective field height: 900 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Integrated laser alignment aid: Yes
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guests: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: M12 female connector, 5-pin or none
- Configuration: DIP switch on system plug
- Display: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.77 W
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65/IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm
- Light type: Visible red light
- Dimensions (H x L x W): 900mm x 30mm x 40mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- 900 mm protective field height with 14 mm resolution
- Scanning range of 2.5 m with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width and beam coding
- Cascading capability with sender having reduced scanning range
- LED display elements for status indication
- Housing made of aluminum extruded profile with IP65/IP67 rating
- Operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Industrial safety for machinery and automation
- Normal industrial environments requiring safety light curtains
- Protection of personnel from hazardous machine areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 1.77 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C4P-SA09011C00 safety light curtain sender is available for immediate purchase, ideal for industrial safety applications in normal industrial environments.
