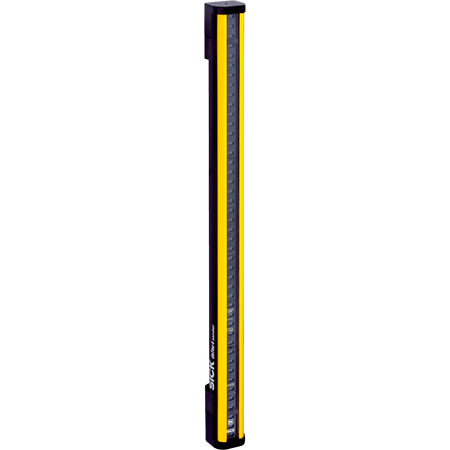

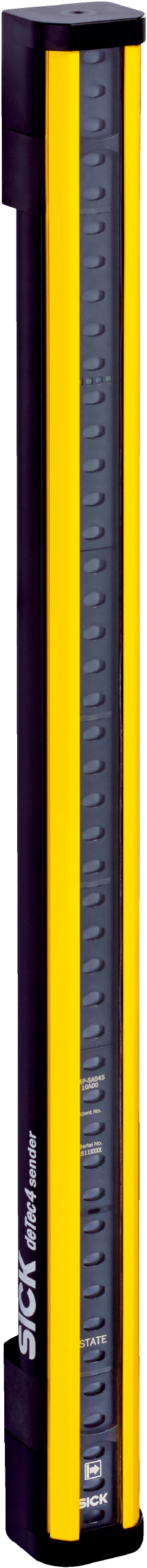

C4P-SA12011C00 | Safety light curtains
The SICK C4P-SA12011C00 deTec4 Safety Light Curtain Sender offers high-performance industrial safety with Type 4 protection, optical synchronization, and integrated laser alignment for reliable machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C4P-SA12011C00 | Safety light curtains
Brand: SICK
SKU: 1220645
Alternatively Known As: Safety light curtain sender, industrial safety light barrier, machine safety sensor, deTec4 safety curtain
Technical Specifications
- Product version: deTec4
- System part: Sender
- Resolution: 14 mm
- Scanning range: 2.5 m
- Protective field height: 1,200 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD single device: 15.3 x 10^-9
- PFHD cascade with one guest: 30.5 x 10^-9
- PFHD cascade with two guest devices: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: Optional M12 female connector, 5-pin
- Configuration: DIP switch on system plug
- Display: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.94 W
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm
- Type of light: Visible red light
- Dimensions (H x L x W): 1200mm x 60mm x 40mm
- Weight: 2.5 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Resolution of 14 mm with a scanning range of 2.5 m
- Protective field height of 1,200 mm with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width
- Beam coding and cascading capability
- Sender with reduced scanning range option
- LED display elements for status indication
- Housing made of aluminum extruded profile
- Protection class III with IP65 and IP67 enclosure rating
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Industrial safety for normal industrial environments
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (1.94 W typical)
- Durable aluminum housing reduces material waste and extends product life
- High reliability reduces downtime and waste from equipment failure
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK C4P-SA12011C00 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications in normal industrial environments.
