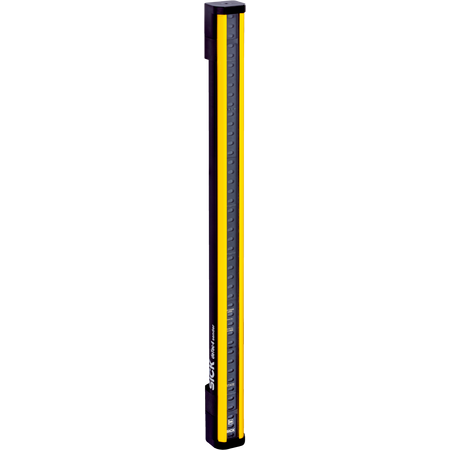

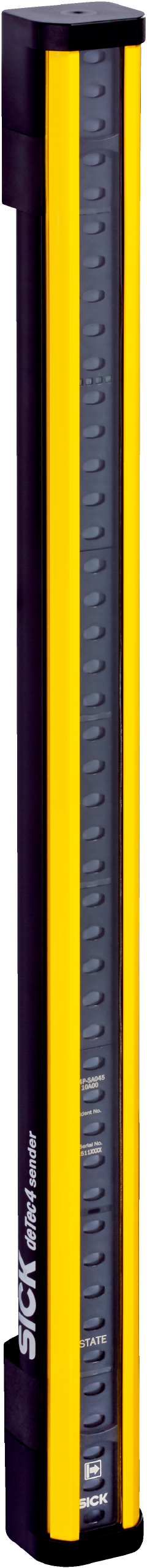

C4P-SA19511A00 Safety Sensor | Type 4 | SIL 3 | 20m Scanning Range | by SICK
The C4P-SA19511A00 Safety Sensor is a Type 4 safety sensor designed for industrial applications, featuring a 20m scanning range and 14mm resolution. With a protective field height of 1,950mm and no blind zones, it ensures optimal safety monitoring. Built for reliability, it operates in temperatures from -30°C to +55°C and is equipped with optical synchronization and an integrated laser alignment aid, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: SICK deTec4 Safety Sensor, C4P-SA19511A00 Sender, Industrial Safety Sensor Sender
Technical Specifications
- Product version: deTec4
- System part: Sender
- Resolution: 14 mm
- Scanning range: 20 m
- Protective field height: 1,950 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Integrated laser alignment aid: Yes
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD Single device: 15.3 x 10^-9
- PFHD Cascade with one guest: 30.5 x 10^-9
- PFHD Cascade with two guest devices: 45.6 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in event of fault: At least one OSSD is OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Extension connection: M12 female connector, 5-pin or none
- Configuration method: DIP switch on system plug
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 2.37 W
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Laser class: 1
- Wavelength: 650 nm
- Type of light: Visible red light
- Dimensions (H x L x W): 200mm x 150mm x 50mm
- Weight: 2 kg
Key Features
- Type 4 safety sensor according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) with Performance level PL e
- 14 mm resolution with 20 m scanning range
- Protective field height of 1,950 mm with no blind zones
- Optical synchronization and integrated laser alignment aid
- Automatic calibration of protective field width
- Beam coding and cascading capabilities
- LED display elements for status indication
- Protection class III (IEC 61140) with 24 V DC supply voltage
- Power consumption typically 2.37 W
- Robust aluminum extruded profile housing
- Enclosure rating IP65 and IP67 for harsh environments
- Operating temperature range from -30 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial safety systems and electrical standards.
Applications
- Normal industrial environment for safety monitoring and protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK deTec4 C4P-SA19511A00 Safety Sensor Sender is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliability.
