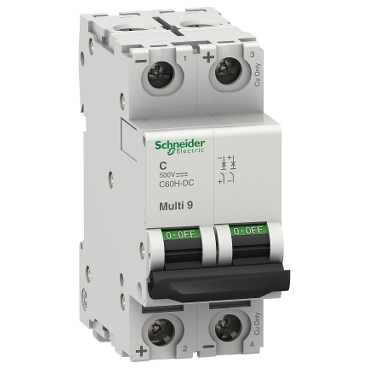

C60H-DC Circuit Breaker | 500V DC Rated | 10kA Breaking Capacity | Compact Design | @Pack of 1 | by Clipsal
The C60H-DC Circuit Breaker is designed for 500V DC applications, featuring a high breaking capacity of 10kA and a compact modular design for easy installation. Ideal for photovoltaic systems and battery storage, this breaker ensures reliable protection against overloads and short circuits, making it perfect for industrial and commercial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C60H-DC Circuit Breaker | 500V DC Rated | 10kA Breaking Capacity | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMGN61525
Alternatively Known As: DC Miniature Circuit Breaker, DC MCB, Clipsal DC Breaker, 500VDC Circuit Breaker, SCHMGN61525
Technical Specifications
- Rated voltage: 500V DC
- Breaking capacity: 10kA
- Number of poles: 1P
- Tripping curve: C
- Thermal-magnetic trip unit
- Mounting: DIN rail
- Operating temperature: -25°C to +70°C
- Standards: IEC/EN 60947-2
- Dimensions (H x L x W): 90mm x 75mm x 18mm
- Weight: 0.15 kg
Key Features
- Rated for 500V DC applications
- High breaking capacity for reliable protection
- Compact modular design for easy installation
- Suitable for use in solar and battery systems
- Thermal-magnetic trip unit for overload and short-circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Photovoltaic (solar) installations
- DC circuits in industrial and commercial environments
- Battery storage systems
- Telecommunications and data centers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports safe integration of renewable energy systems such as solar PV
- Enhances electrical safety, reducing risk of fire and equipment damage
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal C60H-DC 500VDC Circuit Breaker (SCHMGN61525) is available for immediate purchase. Ideal for DC protection in solar, battery, and industrial applications.
