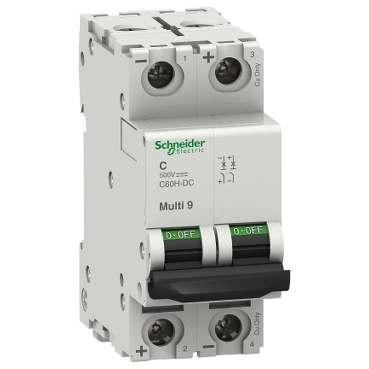

C60H-DC Circuit Breaker | 500V DC Rated | 10kA Breaking Capacity | Compact Design | @Pack of 1 | by Clipsal
The C60H-DC Circuit Breaker is designed for 500V DC applications, featuring a high breaking capacity of 10kA and a compact modular design for easy installation. Ideal for photovoltaic systems and DC circuits in commercial environments, it ensures quick and safe disconnection, enhancing the safety and efficiency of your electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C60H-DC Circuit Breaker | 500V DC Rated | 10kA Breaking Capacity | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMGN61530
Alternatively Known As: C60H-DC Circuit Breaker, Clipsal DC Breaker, 500VDC Miniature Circuit Breaker, SCHMGN61530, DC MCB
Technical Specifications
- Rated voltage: 500V DC
- Breaking capacity: 10kA
- Number of poles: 1P
- Tripping curve: C
- Operating temperature: -25°C to +70°C
- Mounting: DIN rail
- Terminal capacity: 1-25mm²
- Standards: IEC/EN 60947-2
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.12 kg
Key Features
- Rated for 500V DC applications
- High breaking capacity for reliable protection
- Compact modular design for easy installation
- Suitable for use in photovoltaic and other DC systems
- Quick and safe disconnection of DC circuits
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with DC systems and photovoltaic installations.
Applications
- Photovoltaic (solar) installations
- DC circuits in industrial and commercial environments
- Battery storage systems
- Telecommunications and data centers
Standards & Compliance
- Complies with AS/NZS 5033 – Installation of Photovoltaic (Solar) Systems
- Complies with AS/NZS 60947.2 – Low-voltage switchgear and controlgear
Environmental Benefits
- Supports safe integration of renewable energy systems such as solar PV
- Enhances energy efficiency by protecting sensitive DC equipment
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal C60H-DC 500VDC Circuit Breaker (SCHMGN61530) is available for immediate purchase. Ideal for solar, battery, and DC circuit protection in commercial and industrial applications.
