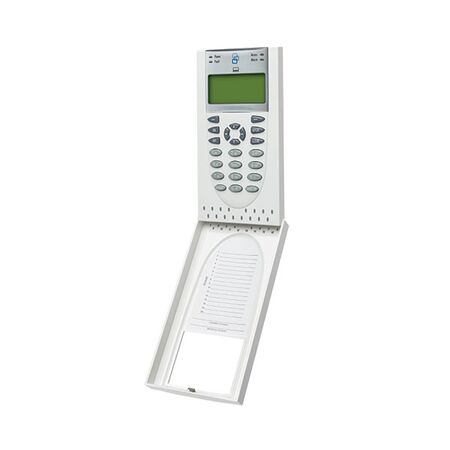

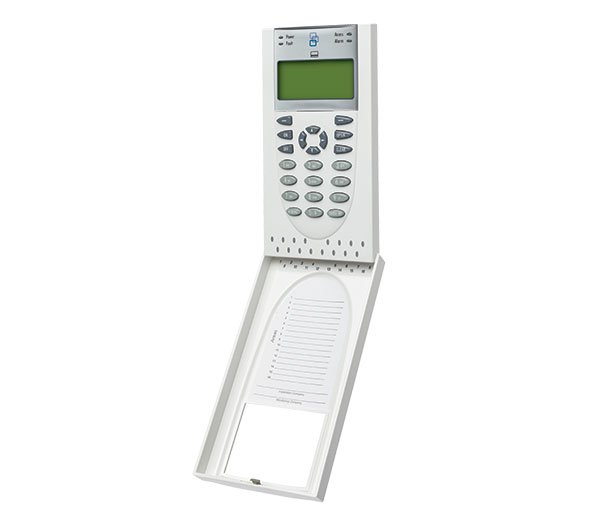

CA1111 Arming Station 16 Area 4x16 LCD Tamper Detection Tecom

BRAND: Ness
SKU: 120-101
$619.40 List price: $825.90
+ −
30 Days Return Electricians Unlock Trade Access
Tecom CA1111 arming station features 16 areas, a 4x16 LCD display and tamper detection. Ideal for alarm systems requiring local arming and status display.

Alternatively Known As: Tecom CA1111 Keypad, Tecom Challenger Arming Station, CA1111 Remote Arming Station, 16-Area LCD Keypad

Technical Specifications
  • Display: 4-line x 16-character LCD
  • Area indication: 16 area status LEDs
  • Supply voltage: 8.5–14 VDC
  • Maximum operating current: 95 mA at 13.8 VDC
  • Normal operating current: 26 mA at 13.8 VDC with all areas armed
  • Communication: RS485 LAN connection
  • Maximum communication distance: Up to 1.5 km from the Challenger panel or compatible controller
  • Operating temperature: 0°C to 50°C
  • Humidity: Up to 95% non-condensing
  • Tamper detection: Integrated tamper switch
  • Additional functions: Custom idle message, adjustable LCD contrast, selectable text formats and customisable beeper tone
  • Dimensions (H x L x W): 165mm x 25.4mm x 92mm
  • Weight: 1 kg
Key Features
  • Controls arming, disarming and alarm access functions on compatible Tecom Challenger systems
  • 4-line x 16-character LCD for system programming, alarm and access-control information
  • Sixteen area LEDs indicate armed, disarmed, fault and alarm conditions
  • Integrated tamper detection helps identify enclosure opening or removal
  • Supports custom idle messages such as company details or emergency contact information
  • Rugged mounting bracket with multiple cable-entry options
  • Low-voltage operation from a compatible alarm control panel or auxiliary supply
Professional Installation Requirements
  • Installation, wiring and programming should be completed by a suitably qualified security-system installer in accordance with the manufacturer’s instructions and applicable requirements of AS/NZS 2201.1. The unit connects to a low-voltage alarm system LAN and must be configured for the compatible Challenger control panel.
Applications
  • Residential intruder alarm systems
  • Commercial security and access-control systems
  • Tecom Challenger and compatible alarm-system installations
  • Replacement or supplementary remote arming station applications
Standards & Compliance
  • Applicable installation standard: AS/NZS 2201.1:2007, Intruder alarm systems—Client’s premises—design, installation, commissioning and maintenance. Product-specific certification was not identified.
Environmental Benefits
  • Low-voltage, low-current operation can help limit energy consumption during continuous operation
  • Durable construction and integrated tamper protection can support longer service life and reduce replacement waste
  • Suitable for system upgrades and replacement installations, potentially extending the usable life of compatible Challenger alarm infrastructure
Warranty Information

5-year warranty from date of manufacture for Tecom Challenger products, subject to the supplier’s warranty terms and conditions.

Available Now

Available through Tecom, Ness Corporation and authorised Australian security-system distributors, subject to current product support and stock status.
