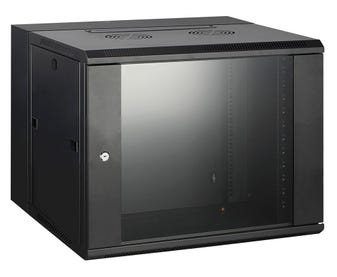

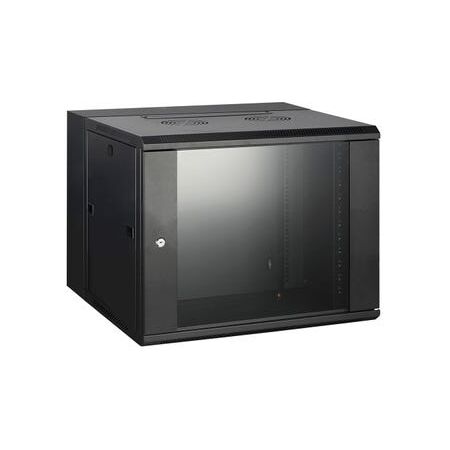

Cabac Swing Frame 9RU | 600W Capacity | 600D Depth | 500H Height by Cabac
The Cabac Swing Frame 9RU offers a 600W capacity and 600D depth, making it ideal for efficient equipment storage and organization. Built for professionals needing reliable rack solutions, it features a sturdy design for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac Swing Frame 9RU | 600W Capacity | 600D Depth | 500H Height by Cabac
Brand: Cabac
SKU: CABRSF9RU-S
Alternatively Known As: Swing Frame Rack Cabinet, 9RU Server Rack, Wall Mount Swing Frame, Data Cabinet Swing Frame
Technical Specifications
- Material: SPCC high quality cold rolled steel
- Rail thickness: 1.5mm
- Frame thickness: 1.2mm
- Side panels thickness: 1.0mm
- Weight capacity: 60kg
- Finish: Powder coat
- Standard compliance: ANSI-310-D, IEC 297-2, DIN 41491/41494
- Dimensions (H x L x W): 500mm x 600mm x 600mm
- Weight: 15 kg
Key Features
- Swing-away feature for full rear access to equipment
- Sturdy welded frame from SPCC high quality cold rolled steel
- Rails thickness: 1.5mm, frame thickness: 1.2mm, side panels: 1.0mm
- Supports up to 60kg weight load when properly installed
- Fully assembled with powder coat finish
- Includes 6-Way PDU, fixed shelf, and cage nuts
- Designed and built to ANSI-310-D, IEC 297-2, DIN 41491/41494 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure secure mounting on suitable walls and compliance with manufacturer instructions.
Applications
- Data centers and server rooms
- Telecommunications equipment housing
- IT infrastructure installations
- Underneath stairwells or tight corner installations
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction extends product lifespan reducing waste
- Powder coat finish provides long-lasting protection reducing need for frequent replacements
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Swing Frame 9RU 600W 600D 500H is available now for immediate purchase. Ideal for server rooms, data centers, and telecommunications installations requiring easy equipment access.
