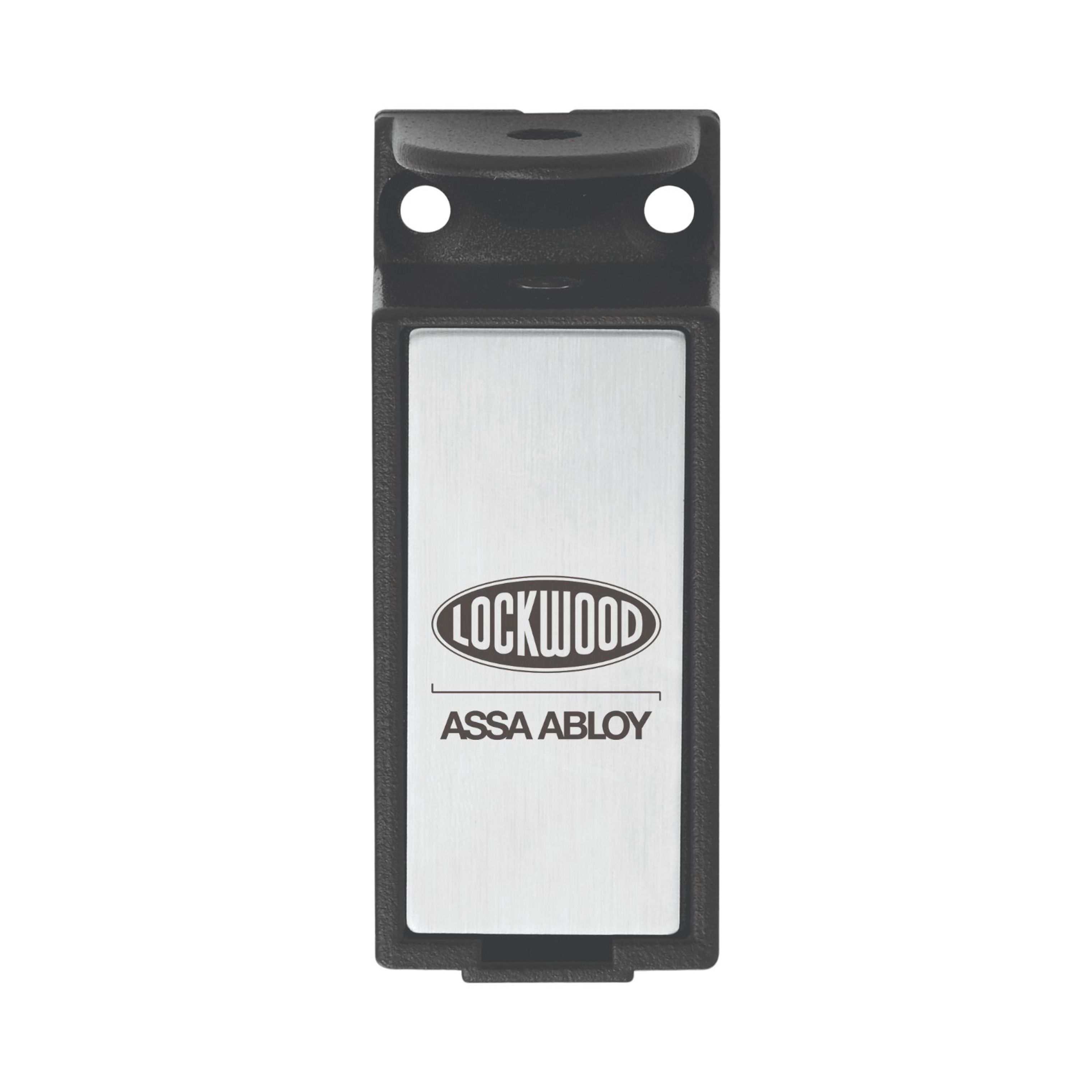

Cabinet Lock 12VDC Fail Safe | Compact Cast Aluminium | 150kg Holding Force | by Lockwood
The Cabinet Lock 12VDC Fail Safe is designed for secure cabinet locking, featuring a robust cast aluminium body and a holding force of 150kg. Ideal for commercial and industrial applications, this lock offers installation flexibility with surface mounting options and compatibility with existing access control systems. With a cycle endurance of 1,000,000 operations, it ensures long-lasting performance and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabinet Lock 12VDC Fail Safe | Compact Cast Aluminium | 150kg Holding Force | by Lockwood
Brand: Lockwood
SKU: EL110-1
Alternatively Known As: Electric Cabinet Lock, Fail Safe Cabinet Lock, 12V Cabinet Lock, Access Control Cabinet Lock
Technical Specifications
- Voltage: 12VDC
- Current: 187mA @ 12VDC
- Solenoid rated for continuous use
- Holding force: 150kg
- Cycle endurance: 1,000,000 operations
- Operational temperature range: -20°C to +60°C
- Body material: Cast Aluminium
- Lock alignment adjustable up to 5mm in x and y directions
- Electrical certifications: CE and C-tick
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 1.2 kg
Key Features
- Compact cast aluminium lock designed for cabinets
- Surface mountable vertically or horizontally for installation flexibility
- Compatible with existing access control systems, remote keypad, or keyswitch
- Cost efficient, robust, and easy to install
- Fail safe operation with option to change to fail secure on site
- Adjustable lock alignment up to 5mm in both x and y directions
- Continuous use solenoid with holding force of 150kg
- Cycle tested to 1,000,000 operations
- Operational temperature range from -20°C to +60°C
Professional Installation Requirements
- Professional installation by a qualified technician or locksmith is recommended to ensure proper alignment and integration with access control systems.
Applications
- Cabinet security for swing or sliding doors
- Access control integration for cabinets
- Suitable for one or multiple cabinet locking applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable cast aluminium construction reduces need for frequent replacements
- Low power consumption at 187mA @ 12VDC supports energy efficiency
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Lockwood EL110 Cabinet Lock 12VDC Fail Safe Non Monitored is available now for immediate purchase. Ideal for secure cabinet locking in commercial and industrial environments.
