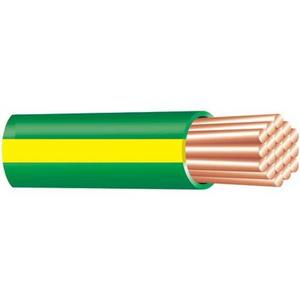

Cable Building Wire Flexible 0.75mm Green/Yellow | Tinned Copper Conductor | PVC Insulation | 0.6/1 kV Rated | by Electra Cables
Cable Building Wire Flexible 0.75mm is designed for reliable electrical connections, featuring a tinned copper conductor for enhanced conductivity and PVC insulation rated for high temperatures. Ideal for control panels and electrical appliances, this single core wire ensures compliance with AS/NZS standards, making it a perfect choice for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Flexible Building Wire, Single Core Flexible Wire, PVC Insulated Building Wire, Tinned Copper Wire
Technical Specifications
- Conductor: Tinned copper wire
- Insulation: PVC V90HT
- Voltage rating: 0.6/1 kV
- Normal operating temperature: 105°C
- Standards: AS/NZS 3808, AS/NZS 3191, RoHS to IEC6231:2008 & 2011/65/EU
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 0.5 kg
Key Features
- Single core flexible wire
- Tinned copper conductor for enhanced conductivity and corrosion resistance
- PVC V90HT insulation rated for high temperature
- Voltage rating of 0.6/1 kV
- Suitable for higher operating temperatures up to 105°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Enclosed wiring in control panels
- Electrical appliances wiring
- Swing out panels wiring
Standards & Compliance
- AS/NZS 3808 – Electrical cables – Polymeric insulated
- AS/NZS 3191 – Electric cables – PVC insulated
- Complies with Electrical & Electronics standards
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable insulation reduces need for frequent replacements
Warranty Information
Warranty as per Electra Cables standard terms and conditions.
Available Now
Electra Cables Flexible Single Core Building Wire 0.75mm Green/Yellow 100M is available for immediate purchase, ideal for control panel and electrical appliance wiring.
