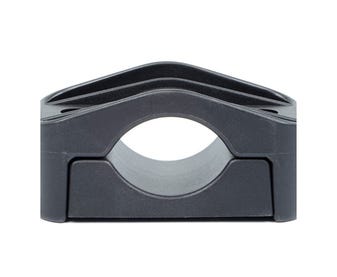

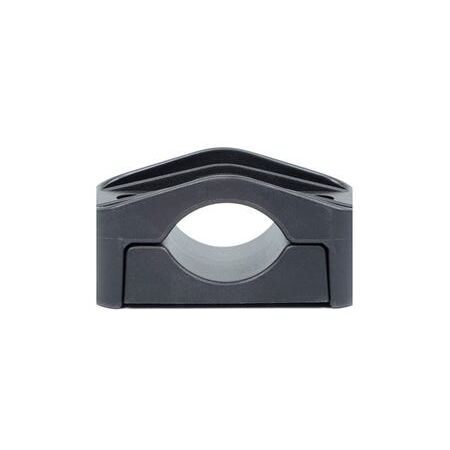

Cable Clamp Set 50-75mm Stainless Steel Fasteners Dutch Clamp
Dutch Clamp cable clamp set features a 50-75mm cable range with stainless steel fasteners. Ideal for cleating LV cables to strut or ladder.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Dutchclamp cable clamp, single cable cleat, LV cable cleat, two-bolt cable clamp
Technical Specifications
- Cable Diameter Range: 50-75 mm
- Clamp Type: Single-way, two-bolt cable cleat
- Clamp Material: Glass fibre reinforced polyamide
- Fastener Material: Stainless steel
- Colour: Black
- Short-Circuit Mechanical Resistance: 12,000 N
- Short-Circuit Current Resistance: Up to 60 kA, subject to installation conditions
- Operating Temperature: -40°C to 120°C
- Momentary Temperature Rating: Up to 225°C
- Flammability: Self-extinguishing UL94 V-0
- Halogen Status: Halogen-free
- Recommended Fastener Torque: 5 N·m
- Fastener Set: Two threaded studs, six nuts and six washers
- Dimensions (H x L x W): 71mm x 126mm x 60mm
- Weight: 0.35 kg
Key Features
- Suitable for single or multicore low-voltage cables from 50 to 75 mm diameter
- Designed for secure cleating to strut, ladder and other cable support systems
- Glass fibre reinforced polyamide provides high mechanical strength without corrosion
- Stainless steel fasteners provide durable, corrosion-resistant fixing
- Resistant to oils, UV, ozone, salts, moisture, acids and aggressive chemicals
- Non-magnetic and non-conductive clamp body
- Smooth cable contact surfaces help distribute pressure and reduce jacket damage
- Tested in accordance with IEC 61914 cable cleat requirements
Professional Installation Requirements
- Installation should be performed by a licensed electrical contractor in accordance with AS/NZS 3000 and the cable manufacturer's requirements. Confirm the cable diameter is within range and tighten the stainless steel fasteners to 5 N·m using a calibrated torque wrench.
Applications
- Securing low-voltage power cables to strut channel
- Cleating cables on cable ladder and tray systems
- Industrial switchboard and electrical infrastructure installations
- Commercial building services and plant-room cable management
- Securing suitable tubes and hoses within the 50-75 mm diameter range
Standards & Compliance
- For use as part of electrical installations designed and installed in accordance with AS/NZS 3000:2018
- Cable cleat performance tested to IEC 61914; verify project-specific Australian requirements before installation
Environmental Benefits
- Glass fibre reinforced polyamide clamp body is recyclable
- Non-corroding construction supports extended service life and reduces replacement waste
- Halogen-free, self-extinguishing material helps reduce hazardous emissions in fire conditions
- Stainless steel fasteners are durable and recyclable at end of service life
Warranty Information
Lifetime warranty stated for Dutchclamp cable clamps, subject to the manufacturer's warranty terms and correct installation.
Available Now
Available through authorised DUTCH distributors in Australia.
