Cable Cleat 26-50mm Galvanised Channel Fasteners Dutch Clamp

BRAND: CABAC
SKU: DC-SEG26-50GS
$63.10 List price: $84.20
+ −
30 Days Return Electricians Unlock Trade Access

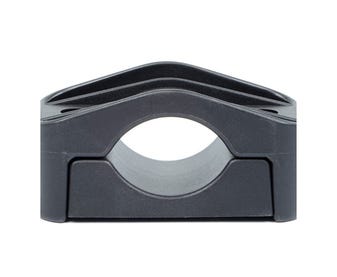

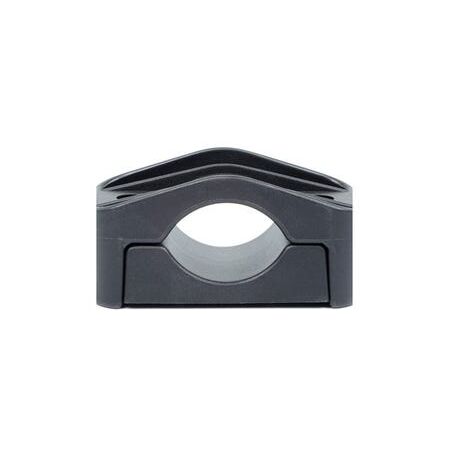

Dutch Clamp single cable cleat features a 26-50mm cable range with galvanised strut channel fasteners. Ideal for securing LV cables to channel.

Alternatively Known As: Dutchclamp SEG 26-50 Single Cable Cleat, Single-Way Cable Clamp, LV Cable Cleat

Technical Specifications
  • Cable Diameter Range: 26-50 mm
  • Cleat Type: SEG single cable cleat, stackable
  • Application: Single and multicore low-voltage cables
  • Material: Glass-fibre-reinforced polyamide
  • Fasteners: Galvanised channel mounting hardware
  • Mechanical Short-Circuit Resistance: 15,000 N
  • Recommended Mounting Torque: 5 N·m
  • Operating Temperature: -40°C to 125°C; 225°C momentarily
  • Flame Rating: UL94 V-0
  • Electrical Properties: Non-magnetic and non-conductive
  • Standard Testing: IEC 61914 cable cleat requirements
  • Dimensions (H x L x W): 80mm x 111mm x 60mm
  • Weight: 0.14 kg
Key Features
  • Suitable for securing 26-50 mm diameter cables
  • Designed for mounting to strut channel using galvanised fasteners
  • Stackable configuration for compact cable routing
  • Short-circuit-resistant design for electrical installations
  • Resistant to UV, ozone, moisture, oils, salts and acids
  • Halogen-free and flame-retardant construction
  • No sharp edges to reduce the risk of cable jacket damage
  • Can be installed using a torque wrench for controlled clamping force
Professional Installation Requirements
  • Installation should be completed by a suitably qualified electrician or electrical contractor. Confirm cable diameter, mounting arrangement, cleat spacing, fault-current requirements and tightening torque in accordance with the manufacturer's instructions and applicable electrical installation requirements.
Applications
  • Securing low-voltage power cables to galvanised strut channel
  • Electrical switchboard and plant-room cable support
  • Industrial cable ladder, tray and channel installations
  • Commercial building services and infrastructure projects
  • Single or multicore cable runs requiring short-circuit restraint
Environmental Benefits
  • Recyclable polyamide construction can reduce end-of-life waste when appropriately processed
  • Halogen-free material avoids halogenated substances in the cleat body
  • Long service life and resistance to UV, moisture and chemicals can reduce replacement frequency
  • Non-corrosive polymer cleat construction supports durability in demanding installations
Warranty Information

Dutchclamp product literature states a lifetime warranty; warranty conditions and exclusions should be confirmed with the Australian distributor before purchase.

Available Now

Available through DUTCH and authorised Australian electrical and cable-management distributors.
