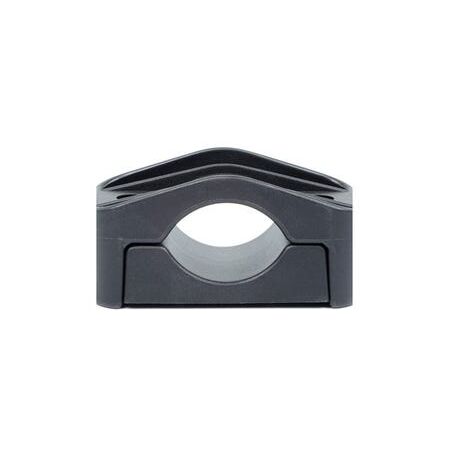

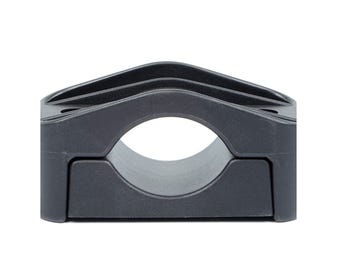

Cable Cleat 26-50mm Stainless Steel Channel Fasteners Dutch Clamp
Dutch Clamp single cable cleat features a 26-50mm cable range with stainless steel channel fasteners. Ideal for securing LV cables to strut.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Dutchclamp SEG 26-50 cable clamp, single-way cable cleat, LV cable cleat, Dutch Clamp cable fastener
Technical Specifications
- Cable Diameter Range: 26–50 mm
- Construction: Glass-fibre-reinforced polyamide
- Fasteners: Stainless steel channel fasteners
- Installation Type: Single cable, strut-channel mounting
- Short-Circuit Resistance: Up to 15,000 N mechanical resistance; 60 kA peak specification
- Lateral Retention: 3,000 N
- Axial Retention: 500 N
- Temperature Range: -40°C to 120°C
- Short-Term Temperature: Up to 225°C
- Flammability: UL94 self-extinguishing
- Electrical Properties: Halogen-free, non-magnetic and non-conductive
- Recommended Fastener Torque: 5 N·m
- Product Certification: Tested in accordance with DIN EN IEC 61914:2023
- Dimensions (H x L x W): 80mm x 111mm x 60mm
- Weight: 0.2 kg
Key Features
- Suitable for securing single low-voltage, medium-voltage and high-voltage cables
- Accommodates cable diameters from 26 mm to 50 mm
- Designed for short-circuit-resistant cable mounting
- Stackable design helps save installation space
- Glass-fibre-reinforced polyamide body resists corrosion, UV, ozone, salt, moisture, oils and acids
- Rounded cable contact surfaces help minimise point loading and jacket damage
- Includes stainless steel channel fasteners for mounting to strut channel
- Black, halogen-free and self-extinguishing construction
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified electrical contractor. Select the cleat for the actual cable diameter, secure the stainless steel channel fasteners using a calibrated torque wrench at the manufacturer's recommended torque, and install the cable-support system in accordance with AS/NZS 3000 and project-specific electrical requirements.
Applications
- Securing LV power cables to strut channel
- Cable support in switchboards, substations and electrical rooms
- Industrial and commercial electrical installations
- Short-circuit-resistant mounting of single-core and multicore cables
- Mounting compatible conduits, tubes and hoses to support channel
Standards & Compliance
- AS/NZS 3000:2018, including applicable amendments, for the selection and installation of electrical equipment and cable-support systems
- Product tested to DIN EN IEC 61914:2023, the international standard for cable cleats for electrical installations
Environmental Benefits
- Glass-fibre-reinforced polyamide construction is recyclable
- Long service life and resistance to UV, chemicals, moisture and corrosion can reduce replacement waste
- Halogen-free construction supports reduced hazardous emissions in the event of fire
- Non-conductive polymer body avoids corrosion associated with some metallic cleat designs
Warranty Information
Lifetime warranty stated by Dutchclamp for its cable clamps, subject to the manufacturer's terms and conditions.
Available Now
Available through Dutchclamp and authorised Australian electrical and cable-management distributors.
