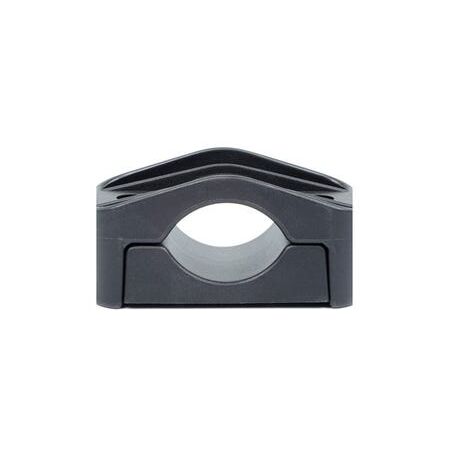

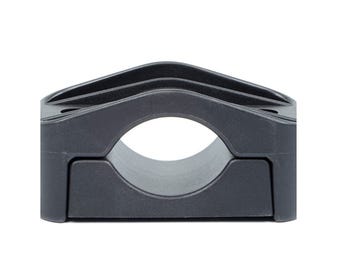

Cable Cleat 36-52mm Galvanised Channel Fasteners Dutch Clamp
Dutch Clamp single cable cleat features a 36-52mm cable range with galvanised strut channel fasteners. Ideal for securing LV cables to channel.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Single cable cleat, Dutchclamp SE 36–52, cable clamp, strut channel cable clamp
Technical Specifications
- Model: SE 36–52
- Item Code: 20001
- Cable Diameter Range: 36–52 mm
- Application: Single and multicore low-, medium- and high-voltage cables
- Material: Glass-fibre-reinforced polyamide (PA)
- Fasteners: Galvanised strut-channel fasteners
- Short-Circuit Resistance: 12,000 N mechanical resistance; manufacturer data also lists 60 kA short-circuit current rating for SE 36–52
- Lateral Retention: 2,700 N
- Axial Retention: 500 N
- Temperature Range: -40°C to 120°C
- Flammability: UL94 self-extinguishing
- Electrical Properties: Halogen-free, non-magnetic and non-conductive
- Recommended Installation Torque: 5 N·m
- International Testing: DIN EN IEC 61914:2023
- Dimensions (H x L x W): 75mm x 105mm x 60mm
- Weight: 0.15 kg
Key Features
- Suitable for cable diameters from 36 to 52 mm
- Single-cable mounting design for LV, MV and HV applications
- Supplied with galvanised fasteners for strut-channel installation
- Glass-fibre-reinforced polyamide construction
- Resistant to UV, ozone, salt, moisture, oils and acids
- Halogen-free and UL94 self-extinguishing
- Non-corrosive and non-conductive construction
- Designed for short-circuit-resistant cable support
- Suitable for cables, tubes and hoses
Professional Installation Requirements
- Installation should be carried out by a suitably qualified electrician or electrical contractor. Confirm cable diameter, support spacing, channel compatibility and tightening torque during installation, and comply with applicable wiring rules and manufacturer instructions.
Applications
- Securing low-voltage power cables to galvanised strut channel
- Supporting medium- and high-voltage cable runs
- Industrial electrical installations
- Switchrooms, substations and cable-support frameworks
- Commercial and infrastructure cable installations
- Securing compatible tubes and hoses to channel systems
Standards & Compliance
- AS/NZS 3000:2018 – applicable wiring-system support and installation requirements for Australian and New Zealand low-voltage installations; the product’s specific manufacturer testing is to DIN EN IEC 61914:2023 rather than an Australian product standard.
Environmental Benefits
- Glass-fibre-reinforced polyamide is durable and recyclable at end of service life
- Non-corrosive construction can extend service life and reduce replacement waste
- Long service life and resistance to UV, moisture and chemicals support reduced maintenance
- Halogen-free material avoids halogenated compounds in the product construction
Warranty Information
Dutchclamp states that its cable clamps are covered by a lifetime warranty; warranty conditions and exclusions should be confirmed with the supplier or manufacturer.
Available Now
Available through Dutchclamp and authorised Australian electrical, cable-management and industrial distributors.
